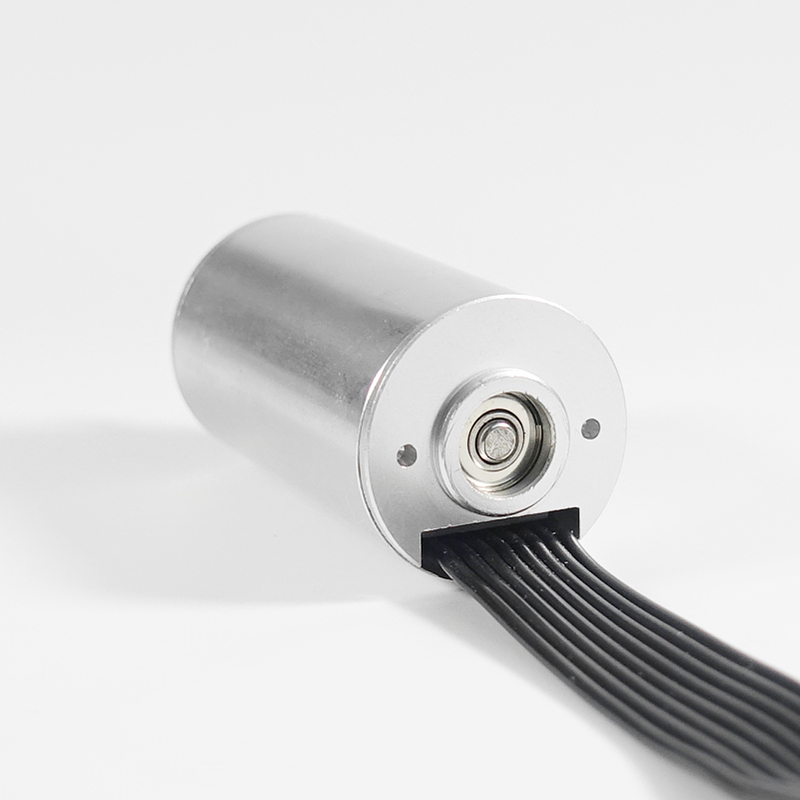

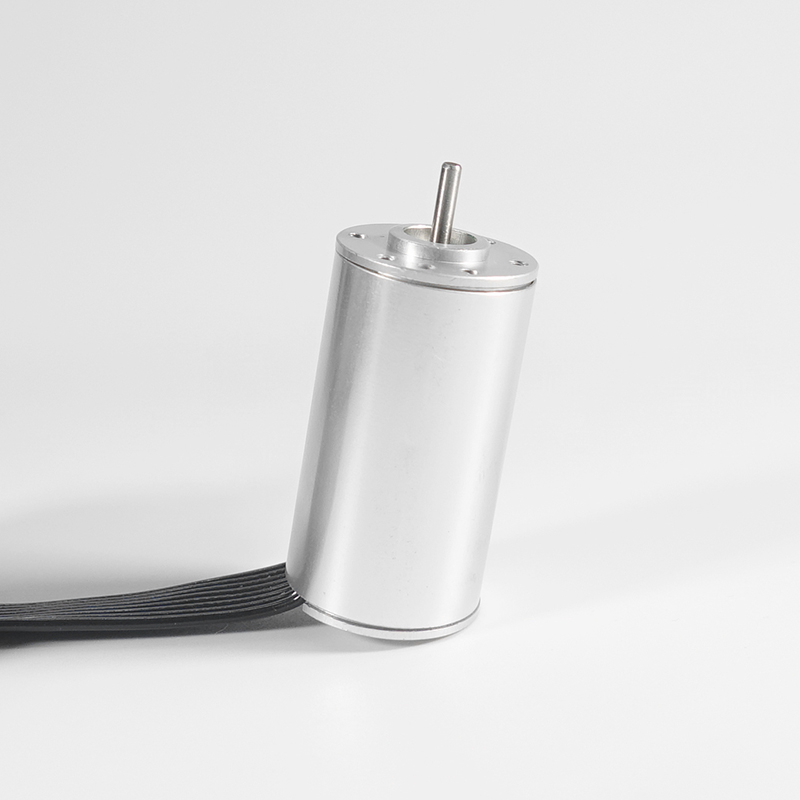

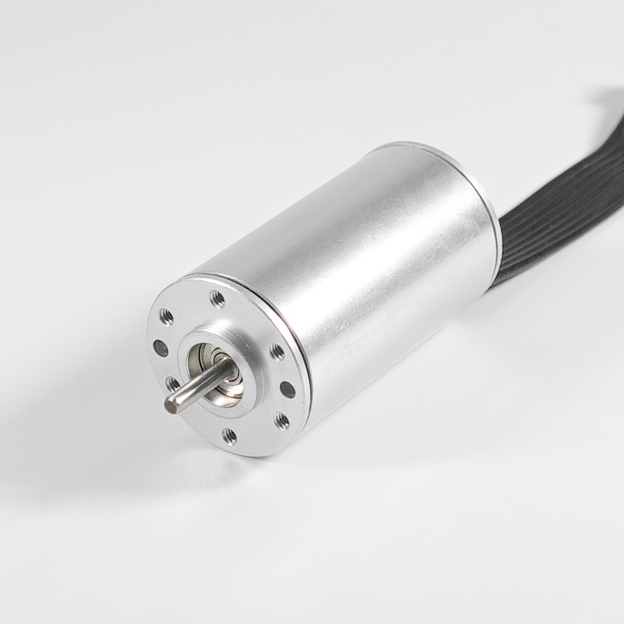

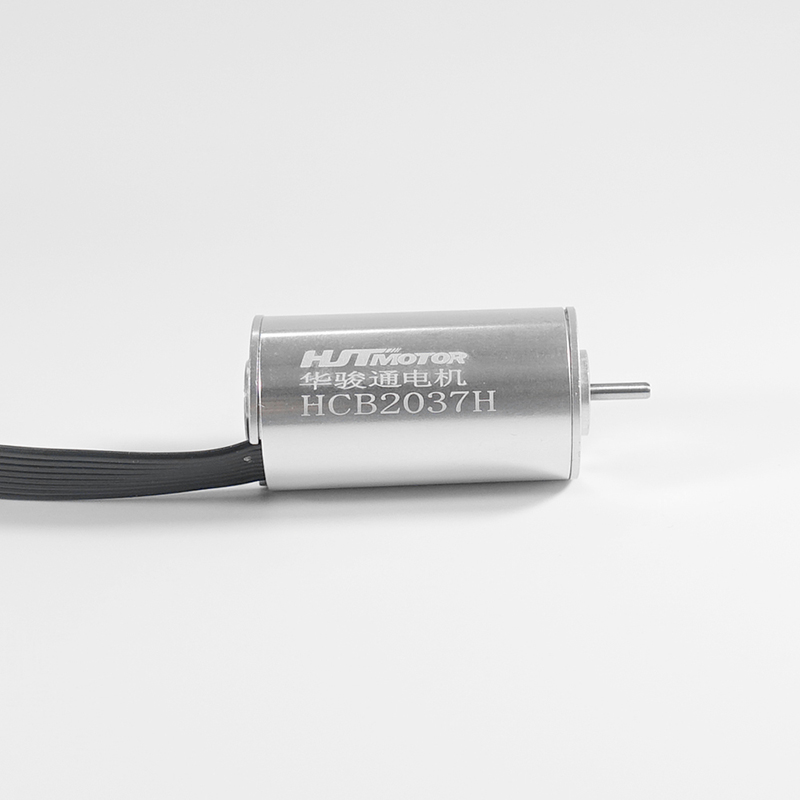

HCB2037 Brushless DC Motor

Widely used in industrial equipment, power tools, medical devices, etc. For example, 2037 coreless brushless motors can be used in industrial grinders, electric screwdrivers, medical pumps, oral medical equipment, dental instruments and other equipment.

Model：HCB2037H

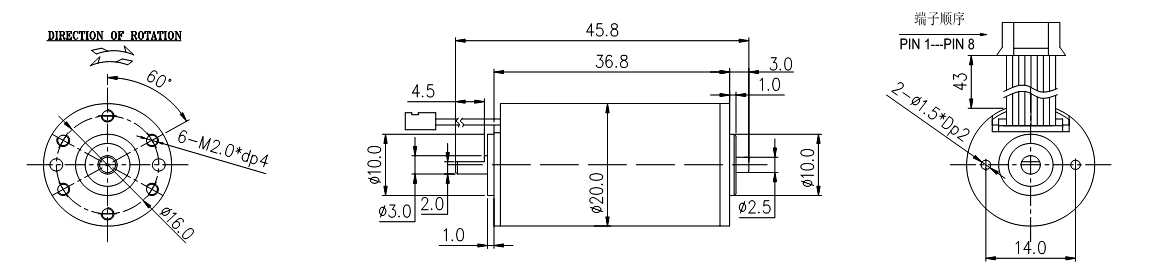

LxWxH(mm)：20.0(D)×36.8(H)
Rated Volts (V)：12.0-24.0
NLSpeed (rpm)：8000-20000
Ld Speed (rpm)：6400-15500
Stall Tq (mNm/A)：31.5-36.7
Stall Curr.(A)：2.4-3.47

Consultation

Product Details

Technical Parameters

Model	HCB2037H-01A	HCB2037H-02A
Voltage(V DC)	12.0	24.0
No-Load Speed(rpm)	8000	20000
No-Load Current(A)	0.08	0.12
Rated Speed(rpm)	6400	15500
Rated Current(A)	0.45	0.7
Rated Load(g.cm)	60	70
Rated Load(mN.m)	5.88	6.86
Rated Load(mN.m)	5.88	6.86
Load Power(W)	3.45	10.2
Stall Torque(g.cm)	322	375
Stall Torque(mN.m)	31.5	36.7
Stall Torque(mN.m)	31.5	36.7
Stall Current(A)	2.4	3.47

Motor performance parameters are for reference only;

customization is available according to actual requirements.
