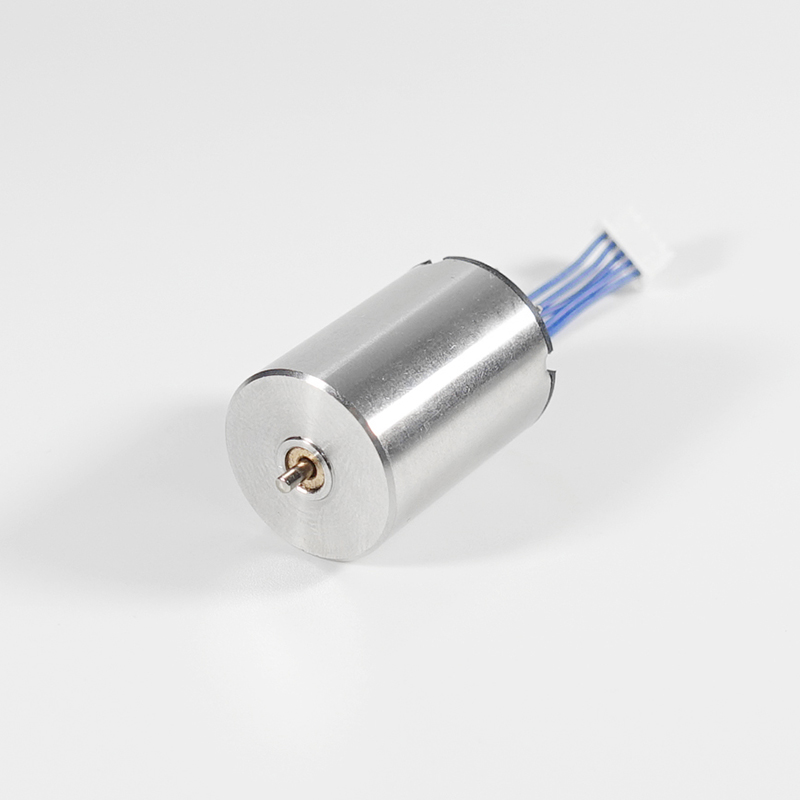

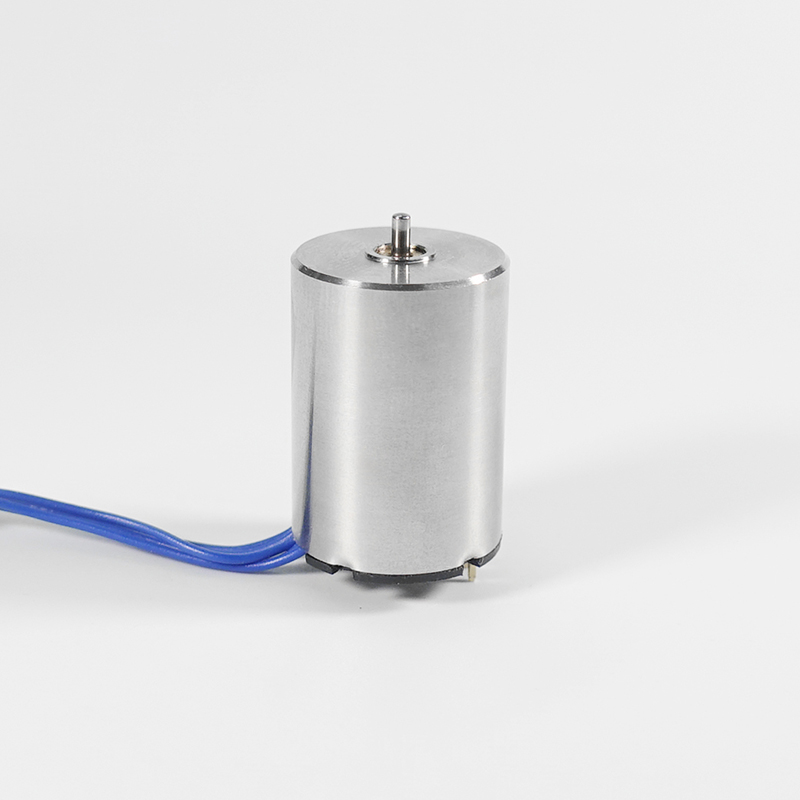

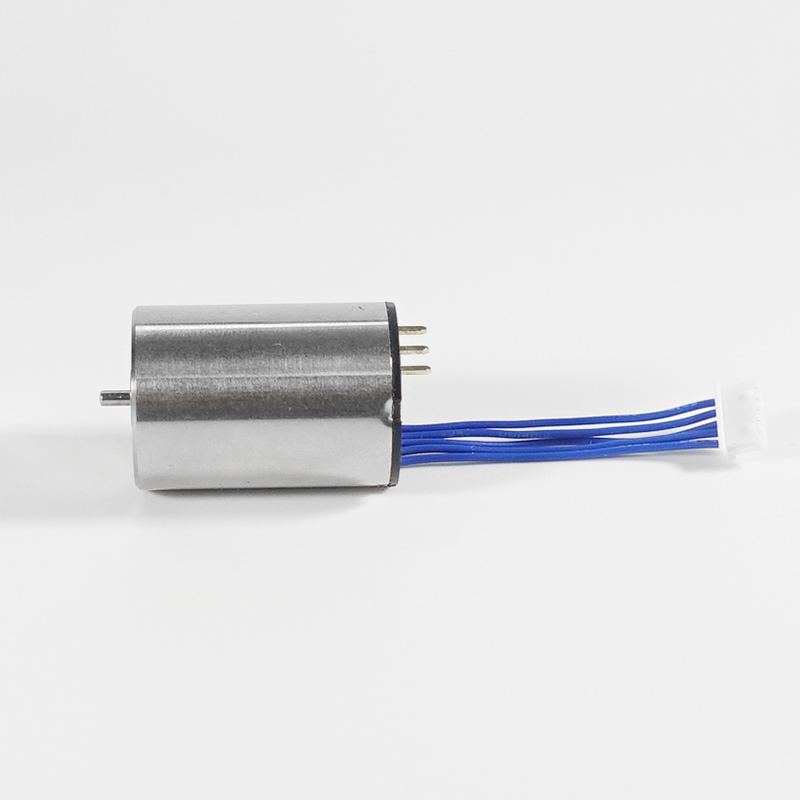

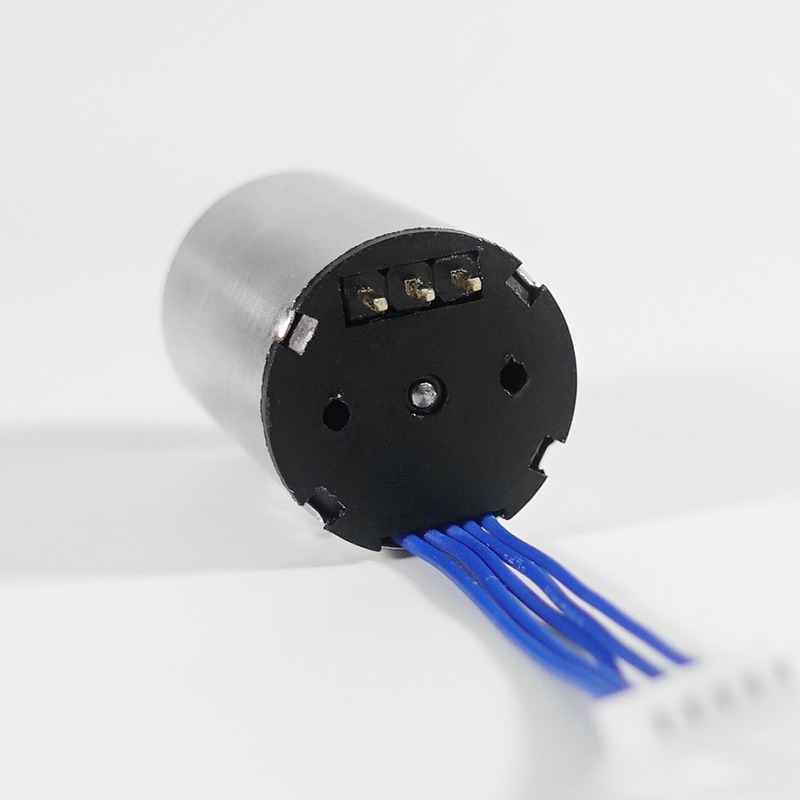

HCB1725 Brushless DC Motor

Widely used in industrial equipment, power tools, medical devices, etc. For example, 1725 coreless brushless motors can be used in high-speed tattoo machines, industrial robots, industrial fixtures, medical pumps, pacemakers and other equipment.

Model：HCB1725H

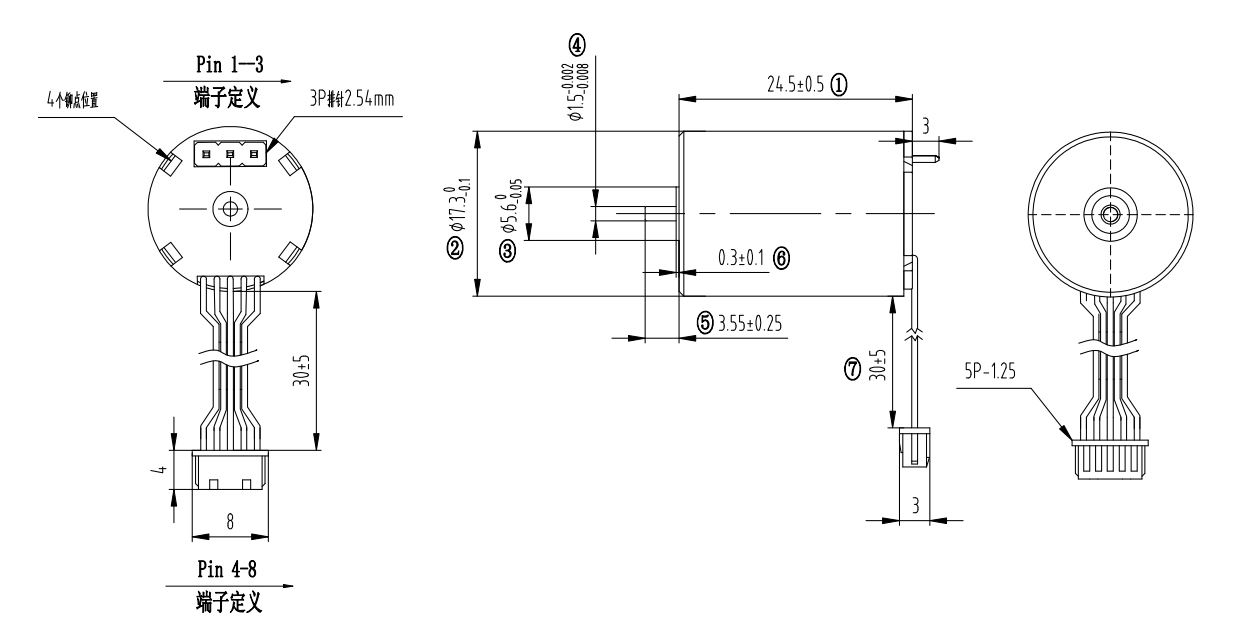

LxWxH(mm)：17.3(D)×25.0(H)
Rated Volts (V)：7.4
NLSpeed (rpm)：14500-34000
Ld Speed (rpm)：12000-27500
Stall Tq (mNm/A)：11.4-25.5
Stall Curr.(A)：3.0-13

Consultation

Product Details

Technical Parameters

Model	HCB1725H-01A	HCB1725H-02A
Voltage(V DC)	7.4	7.4
No-Load Speed(rpm)	14500	34000
No-Load Current(A)	0.15	0.4
Rated Speed(rpm)	12000	27500
Rated Current(A)	0.6	2.8
Rated Load(g.cm)	20	50
Rated Load(mN.m)	2	4.9
Rated Load(mN.m)	2	4.9
Load Power(W)	2.5	14.1
Stall Torque(g.cm)	116	260
Stall Torque(mN.m)	11.4	25.5
Stall Torque(mN.m)	11.4	25.5
Stall Current(A)	3.0	13

Motor performance parameters are for reference only;

customization is available according to actual requirements.
