Huajuntong: 20+ automated motor production lines, 200+ semi & high-precision automated equipments, annual output over 50 million motors.

Products

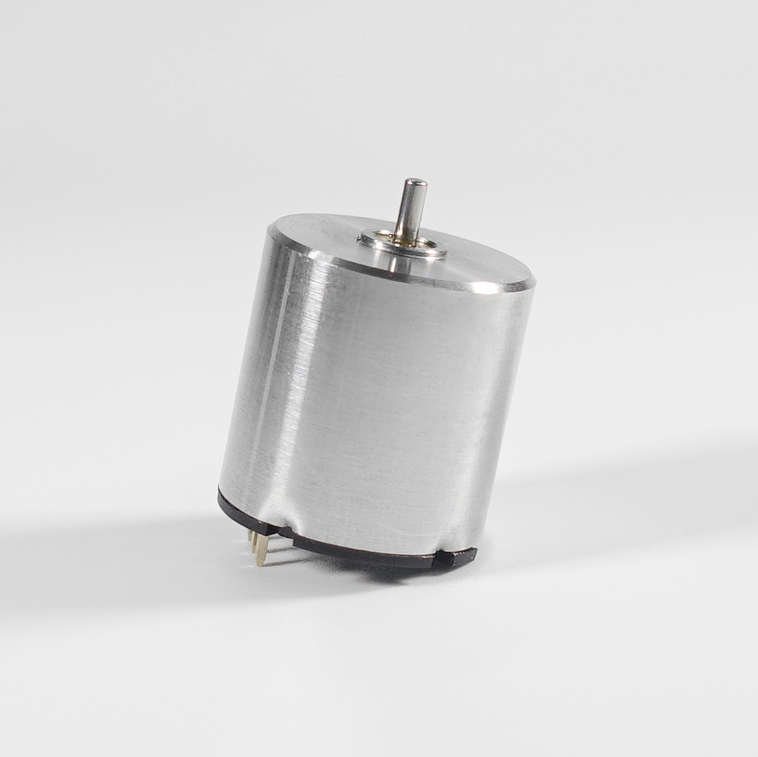

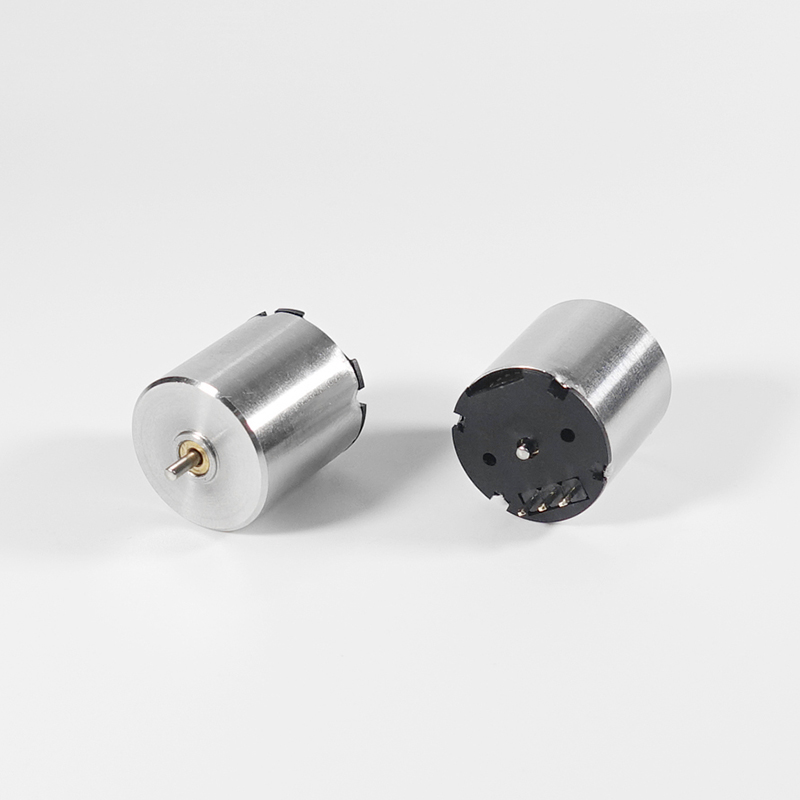

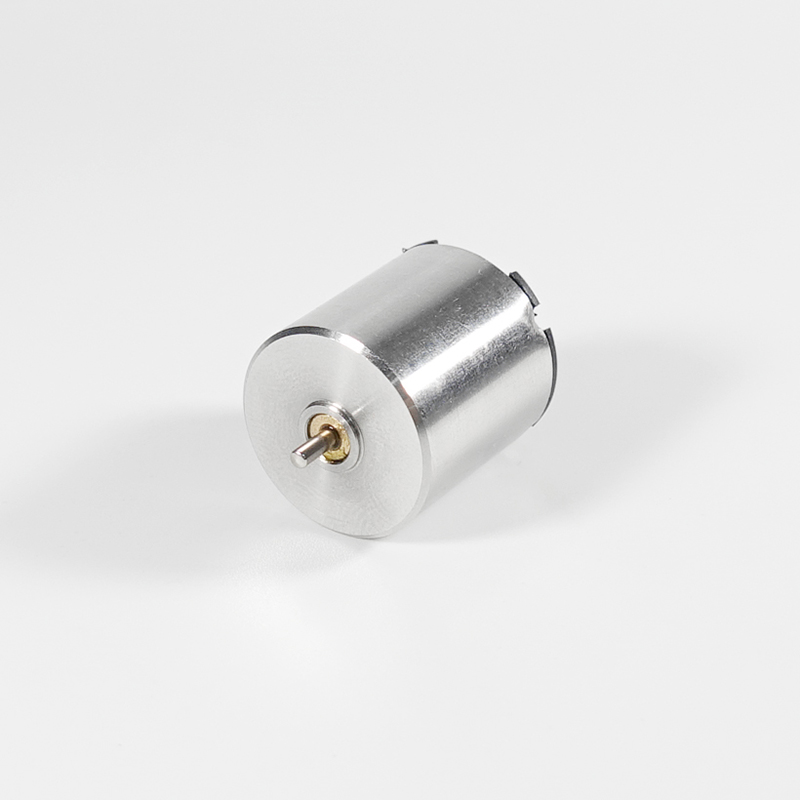

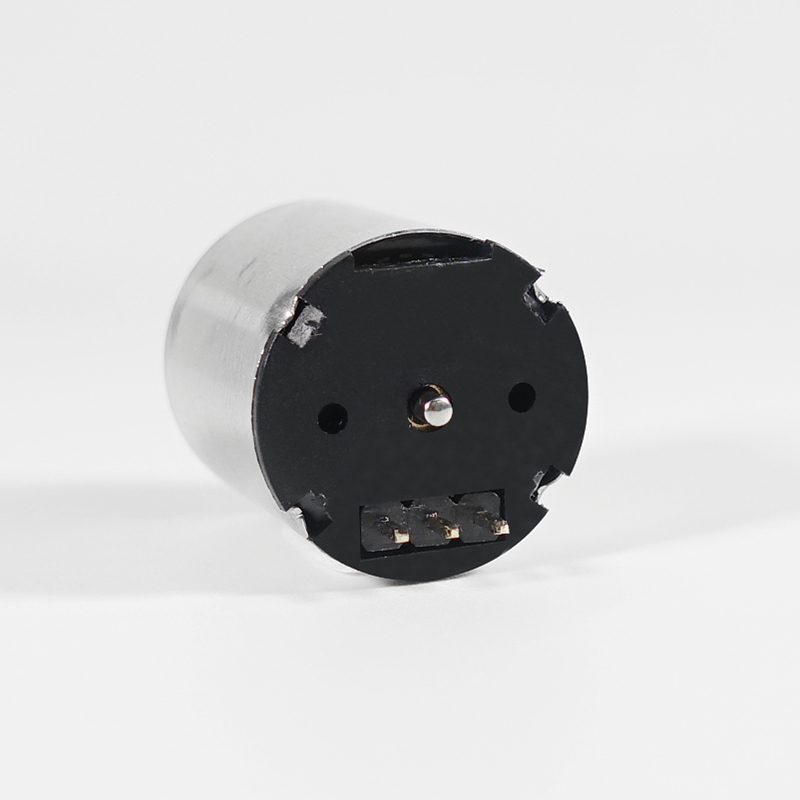

HCB1718 Brushless DC Motor

Widely used in industrial equipment, power tools, servo motors, pumps, etc. For example, 1718 coreless brushless motors can be used in high-speed tattoo machines, industrial robots, industrial fixtures, toy cars and other equipment.

Model：HCB1718H
LxWxH(mm)：17.3(D)×18.3(H)
Rated Volts (V)：7.4-12.0
NLSpeed (rpm)：25000-27000
Ld Speed (rpm)：21000-23000
Stall Tq (mNm/A)：13.7-16.3
Stall Curr.(A)：3.5-4.5

Consultation

Product Details

Technical Parameters

Model	HCB1718H-01A	HCB1718H-02A
Voltage(V DC)	7.4	12.0
No-Load Speed(rpm)	27000	25000
No-Load Current(A)	0.17	0.05
Rated Speed(rpm)	23000	21000
Rated Current(A)	0.8	0.6
Rated Load(g.cm)	20	25
Rated Load(mN.m)	2	2.45
Rated Load(mN.m)	2	2.45
Load Power(W)	4.7	5.38
Stall Torque(g.cm)	140	166
Stall Torque(mN.m)	13.7	16.3
Stall Torque(mN.m)	13.7	16.3
Stall Current(A)	4.5	3.5

Motor performance parameters are for reference only;

customization is available according to actual requirements.
