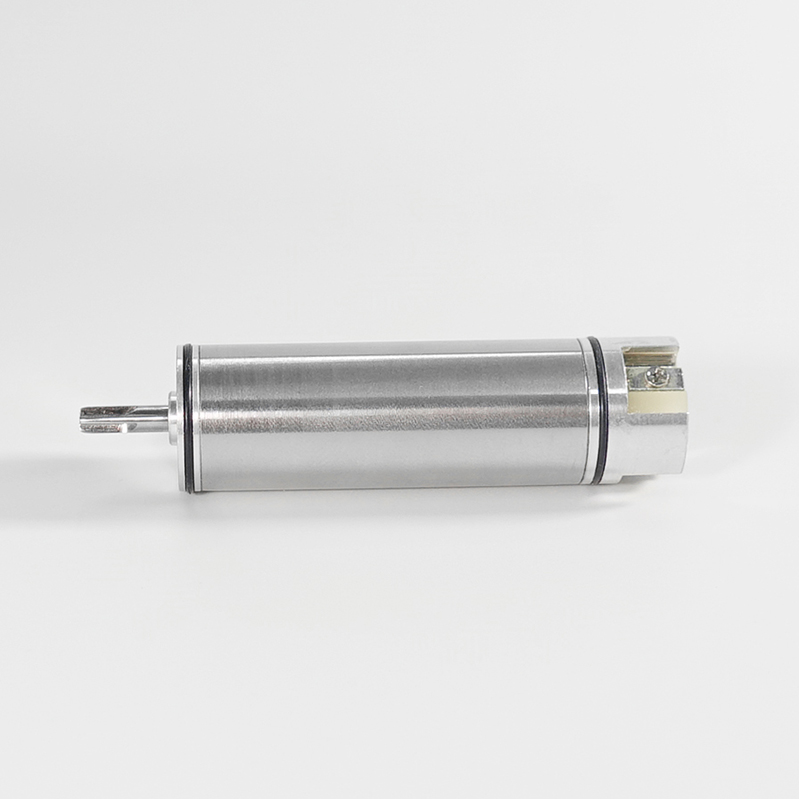

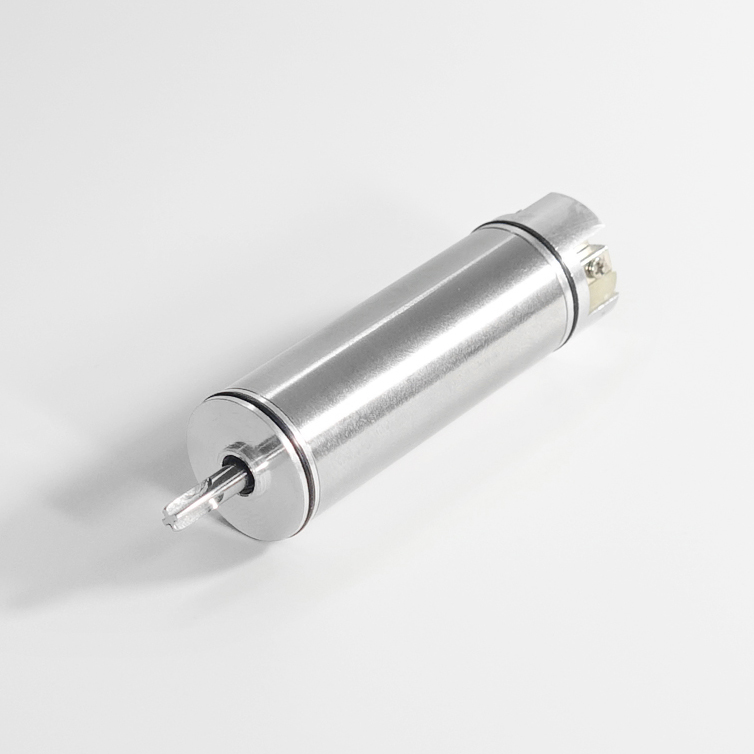

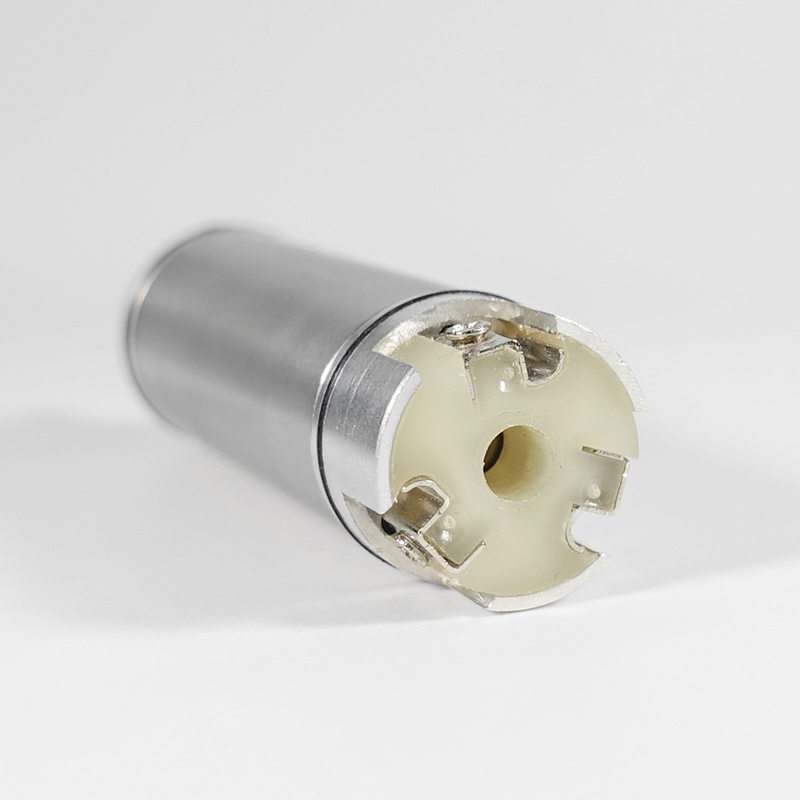

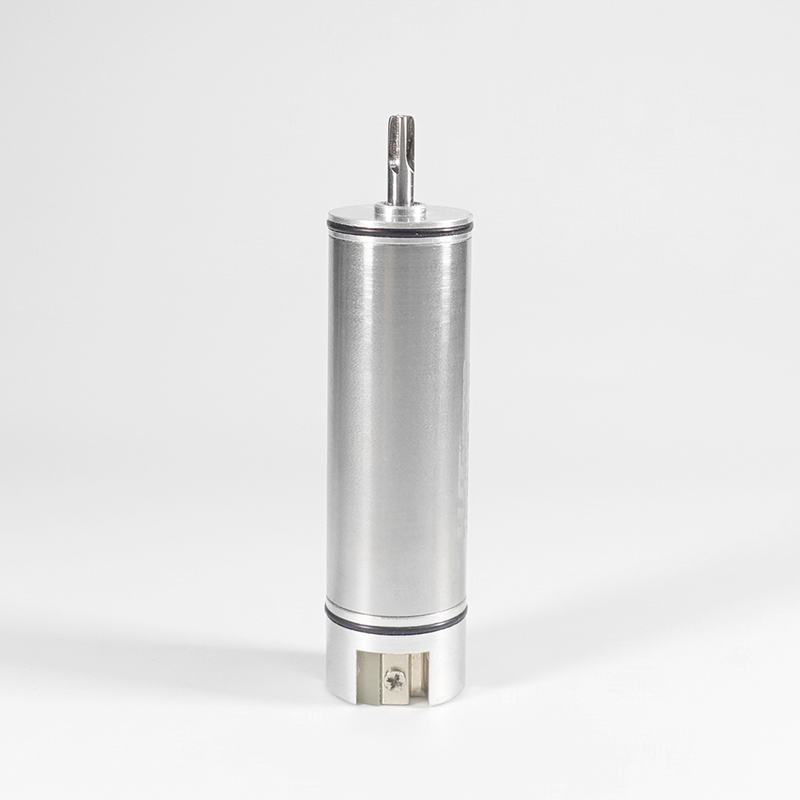

HCB1654 Brushless DC Motor

Widely used in medical devices, intelligent manufacturing and robotics, smart home, etc. For example, 1654 coreless brushless motors can be used in smart pill boxes, medical pumps, robotic arms, smart blind guidance, electric curtains, industrial fixtures and other equipment.

Model：HCB1654N

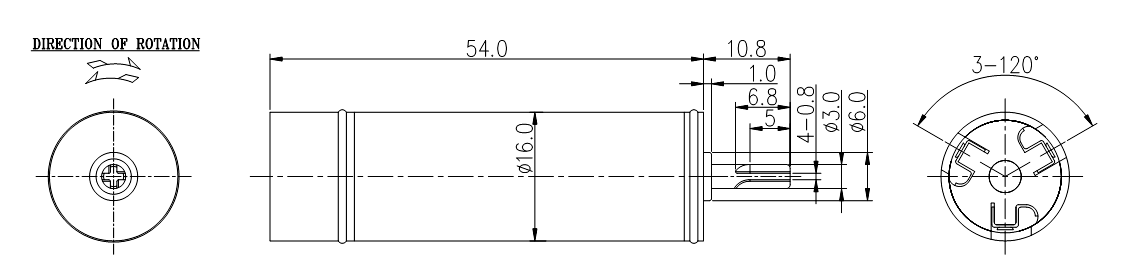

LxWxH(mm)：16.0(D)×54.0(H)
Rated Volts (V)：24.0
NLSpeed (rpm)：30000
Ld Speed (rpm)：28000
Stall Tq (mNm/A)：35.28
Stall Curr.(A)：4.8

Consultation

Product Details

Technical Parameters

Model	HCB1654N-01A
Voltage(V DC)	24.0
No-Load Speed(rpm)	30000
No-Load Current(A)	0.10
Rated Speed(rpm)	28000
Rated Current(A)	0.60
Rated Load(g.cm)	40
Rated Load(mN.m)	3.92
Rated Load(mN.m)	3.92
Load Power(W)	11.49
Stall Torque(g.cm)	360
Stall Torque(mN.m)	35.28
Stall Torque(mN.m)	35.28
Stall Current(A)	4.8

Motor performance parameters are for reference only;

customization is available according to actual requirements.
