Huajuntong: 20+ automated motor production lines, 200+ semi & high-precision automated equipments, annual output over 50 million motors.

Products

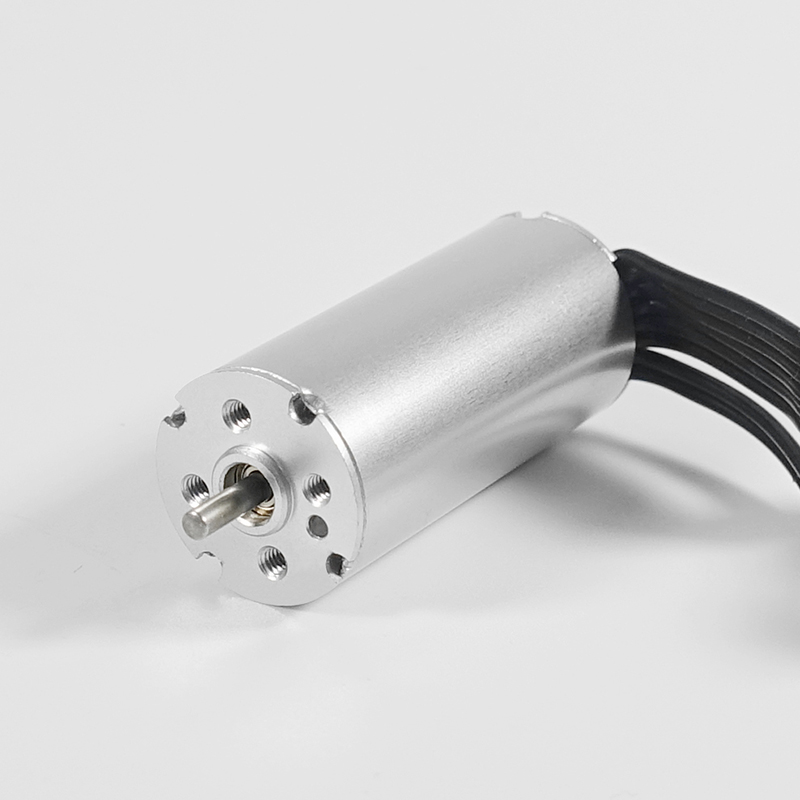

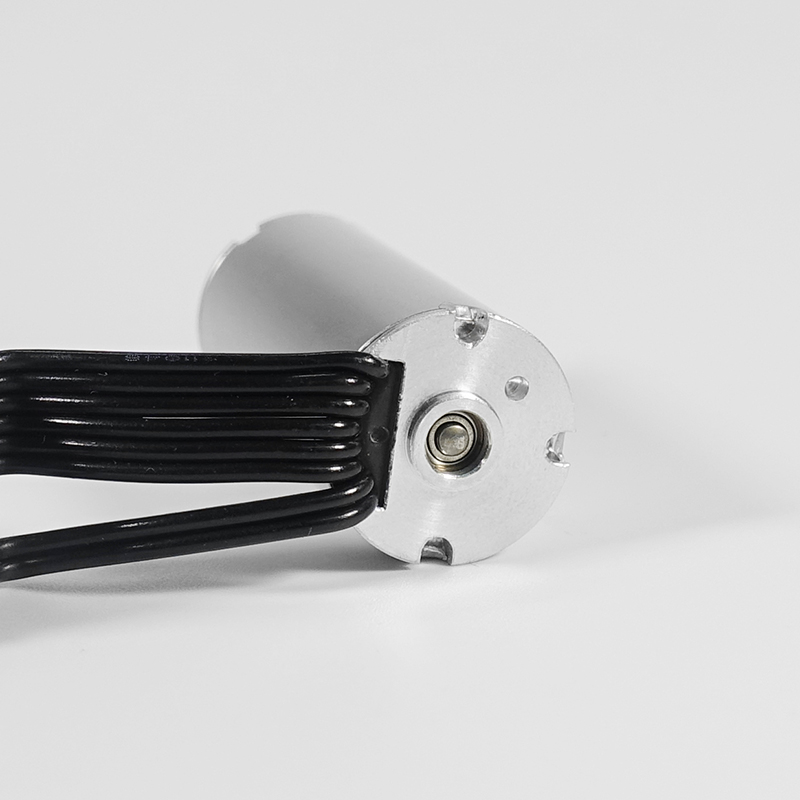

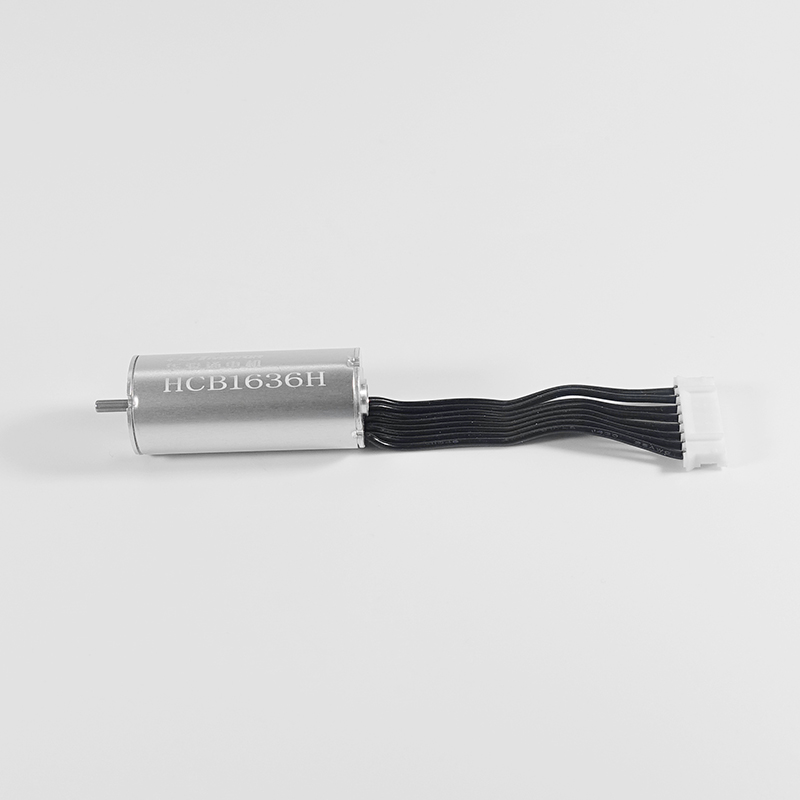

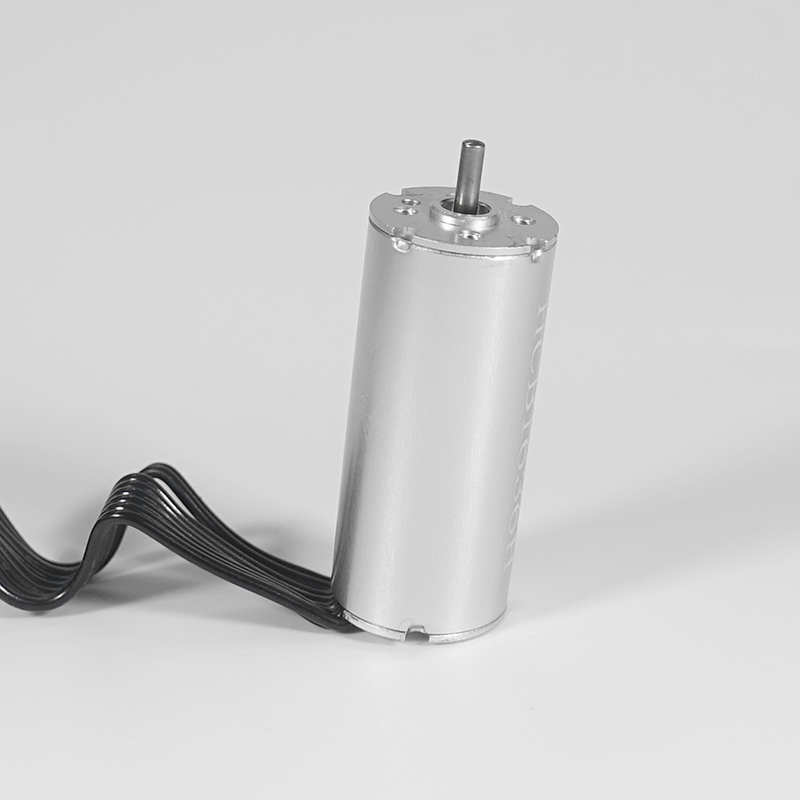

HCB1636 Brushless DC Motor

Widely used in medical equipment, intelligent manufacturing and robotics, power tools, etc. For example, 1636 coreless brushless motors can be used in medical pumps, oral medical equipment, intensive care ventilators, industrial robots, electric screwdrivers and other equipment.

Model：HCB1636H

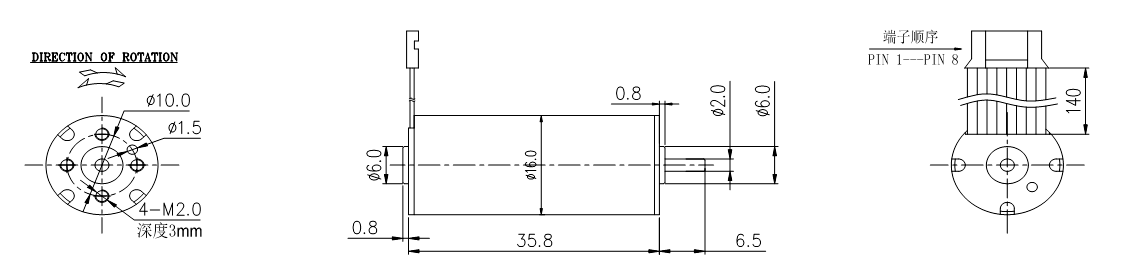

LxWxH(mm)：16.0(D)×35.8(H)
Rated Volts (V)：12.0-24.0
NLSpeed (rpm)：12000-14000
Ld Speed (rpm)：9000-11200
Stall Tq (mNm/A)：17.64-26.4
Stall Curr.(A)：1.8-2.2

Consultation

Product Details

Technical Parameters

Model	HCB1636H-01A	HCB1636H-02A
Voltage(V DC)	24.0	12.0
No-Load Speed(rpm)	14000	12000
No-Load Current(A)	0.1	0.15
Rated Speed(rpm)	11200	9000
Rated Current(A)	0.45	0.65
Rated Load(g.cm)	56	50
Rated Load(mN.m)	5.5	4.9
Rated Load(mN.m)	5.5	4.9
Load Power(W)	6.45	4.6
Stall Torque(g.cm)	270	180
Stall Torque(mN.m)	26.4	17.64
Stall Torque(mN.m)	26.4	17.64
Stall Current(A)	1.8	2.2

Motor performance parameters are for reference only;

customization is available according to actual requirements.
