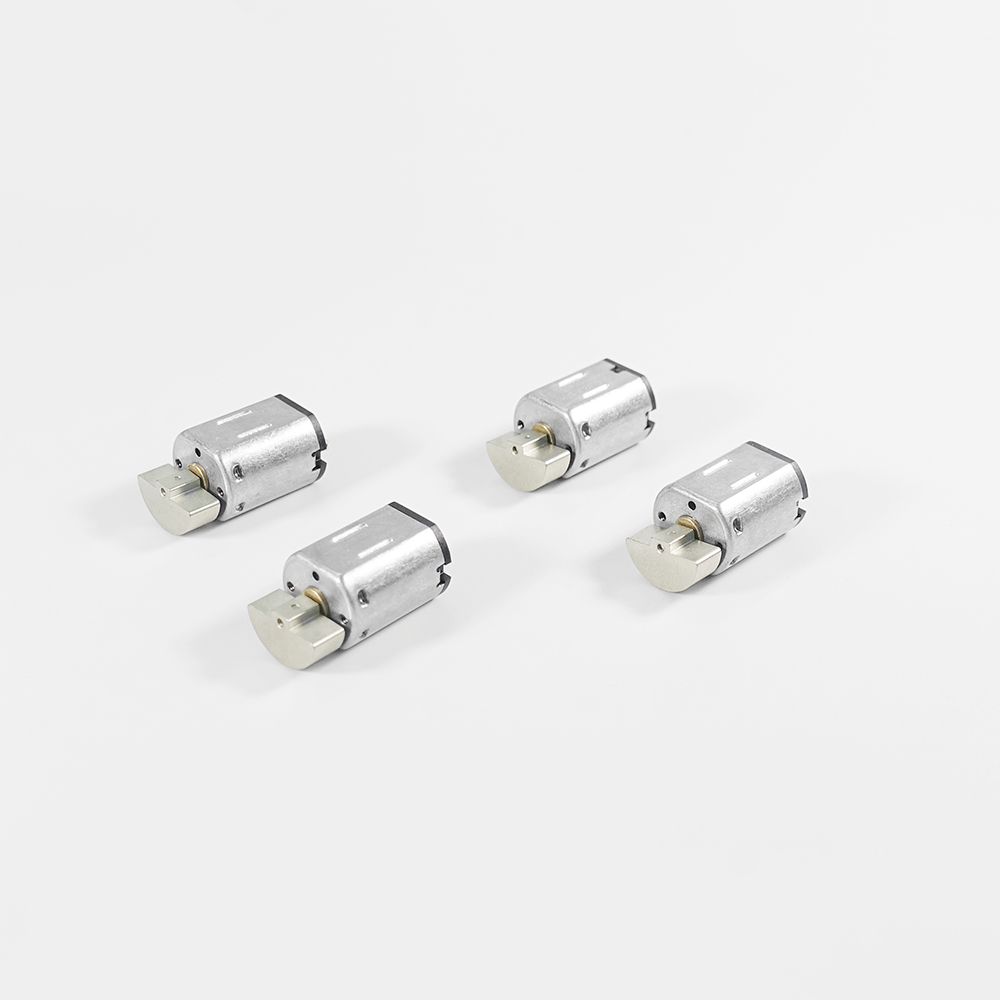

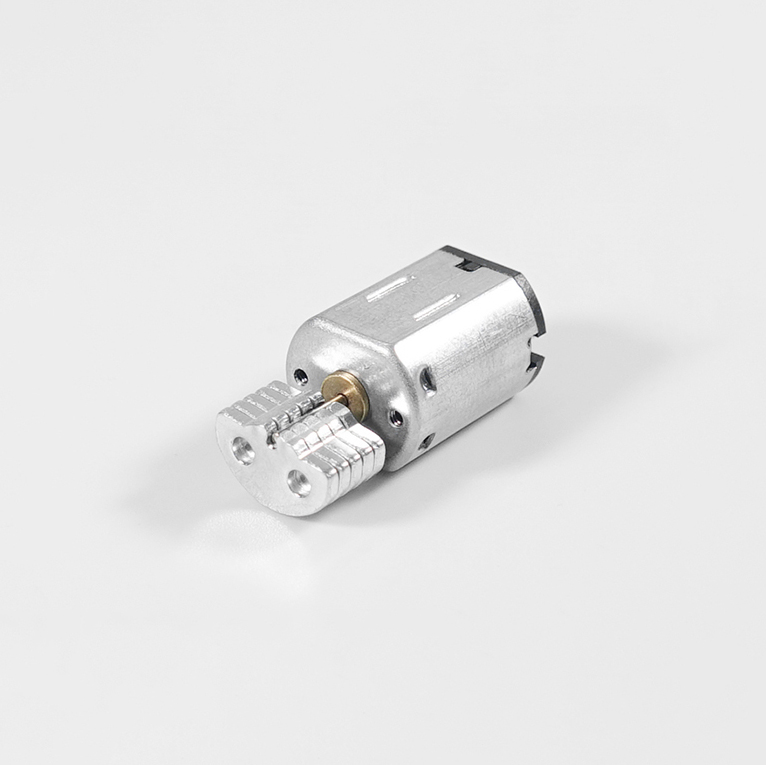

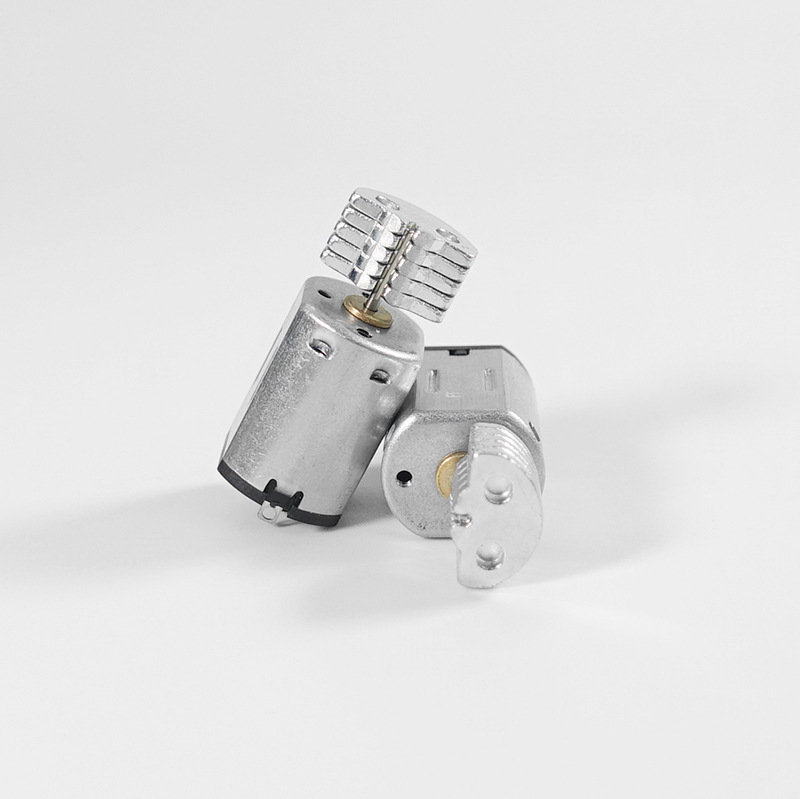

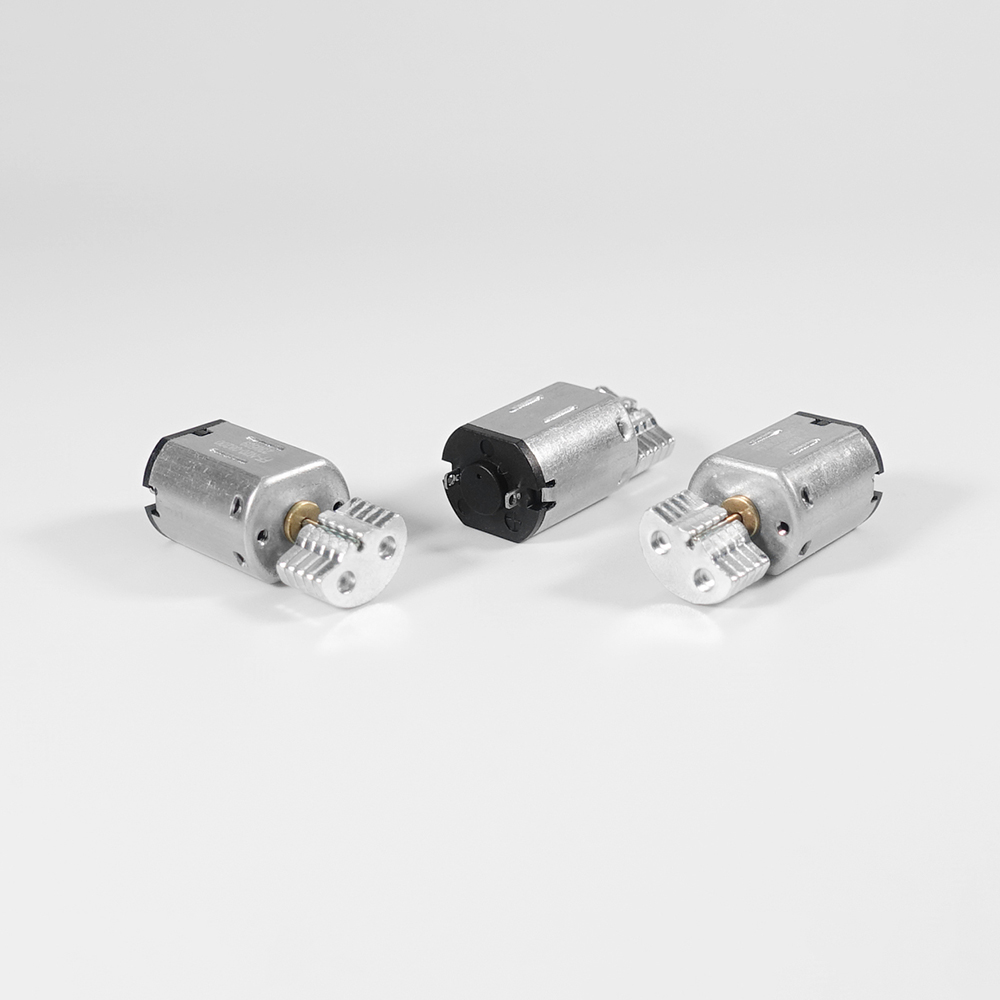

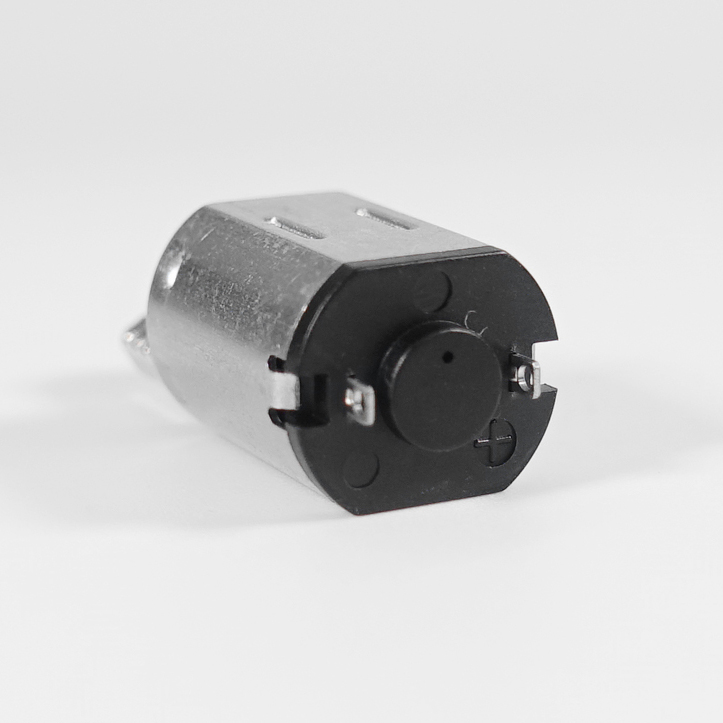

N20 Vibration Motor

Widely used in beauty & personal care, adult products, smart home and other fields. For example, N20 micro vibration motors can be applied in facial cleansers, massagers, AV vibrators, bullet vibrators, smart door locks, robot toys and other devices.

Model：HFF-N20VA
LxWxH(mm)：12.0×10.0×15.1 (Vibration head can be customized as required)
Rated Volts (V)：3.0-4.0
Ld Speed (rpm)：7600-13000
Stall Curr.(A)：0.30-0.90

Consultation

Product Details

Technical Parameters

Model	HFF-N20VA-08250	HFF-N20VA-12120
Voltage(V DC)	4.0	3.0
Rated Speed(rpm)	7600	13000
Rated Current(A)	0.085	0.135
Eccentric Load Size	R5.8*4.8 Laminated Vibration Head	Φ6*4.0 Copper Vibration Head
Starting Voltage (V)	0.75	0.35
Starting Voltage (V)	0.75	0.35
Stall Current(A)	0.30	0.90

Motor performance parameters are for reference only;

customization is available according to actual requirements.
