Huajuntong: 20+ automated motor production lines, 200+ semi & high-precision automated equipments, annual output over 50 million motors.

Products

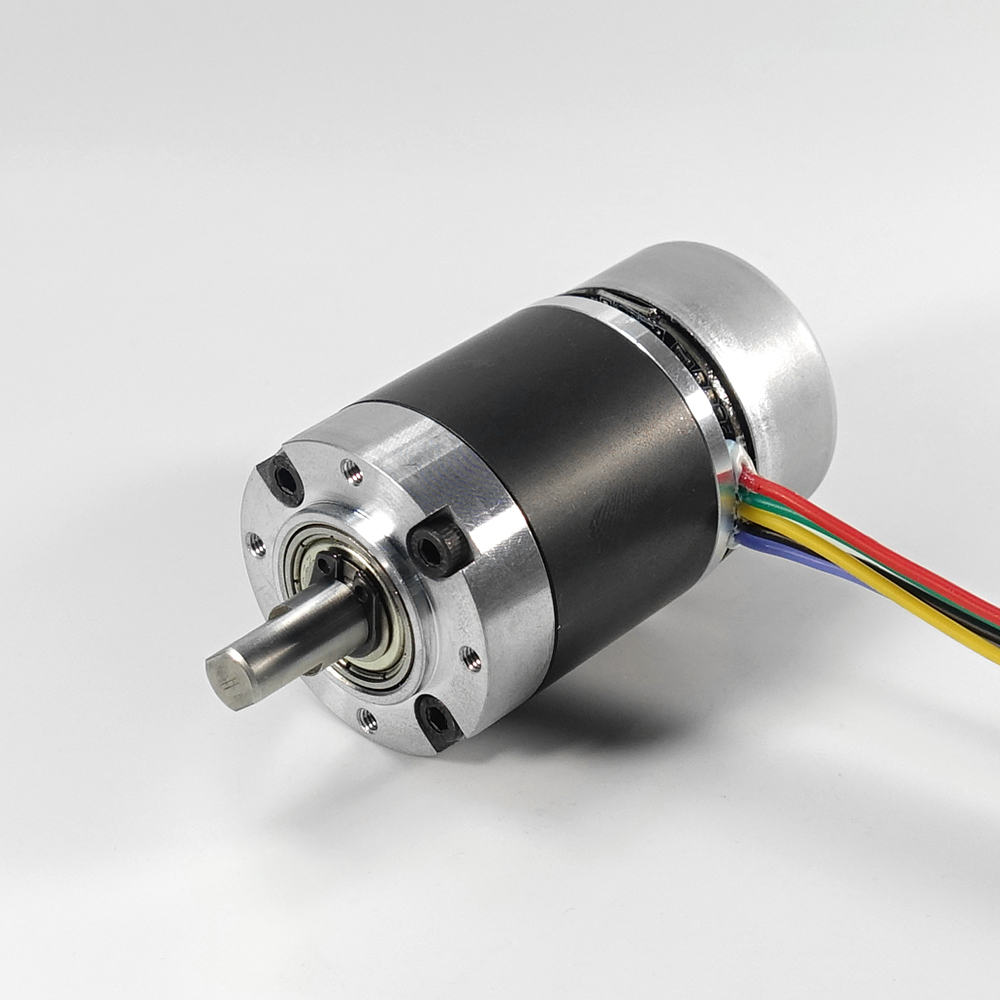

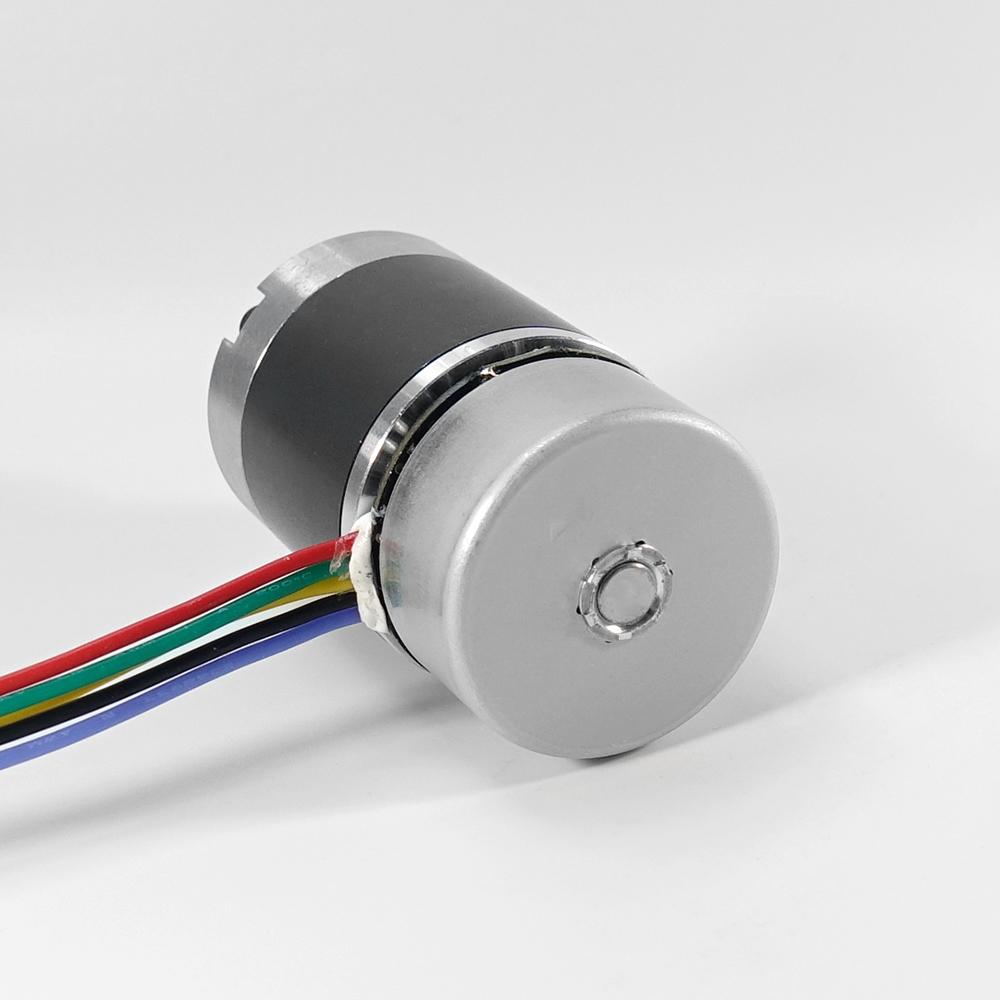

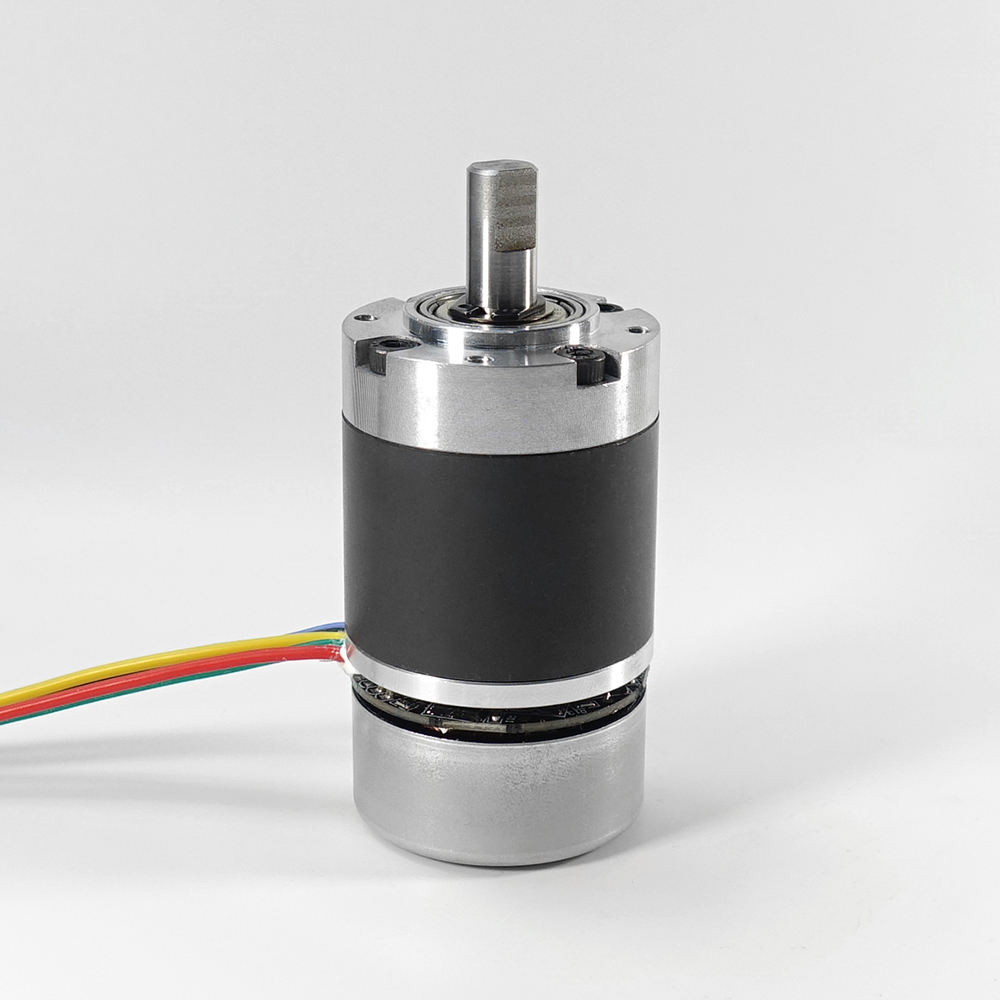

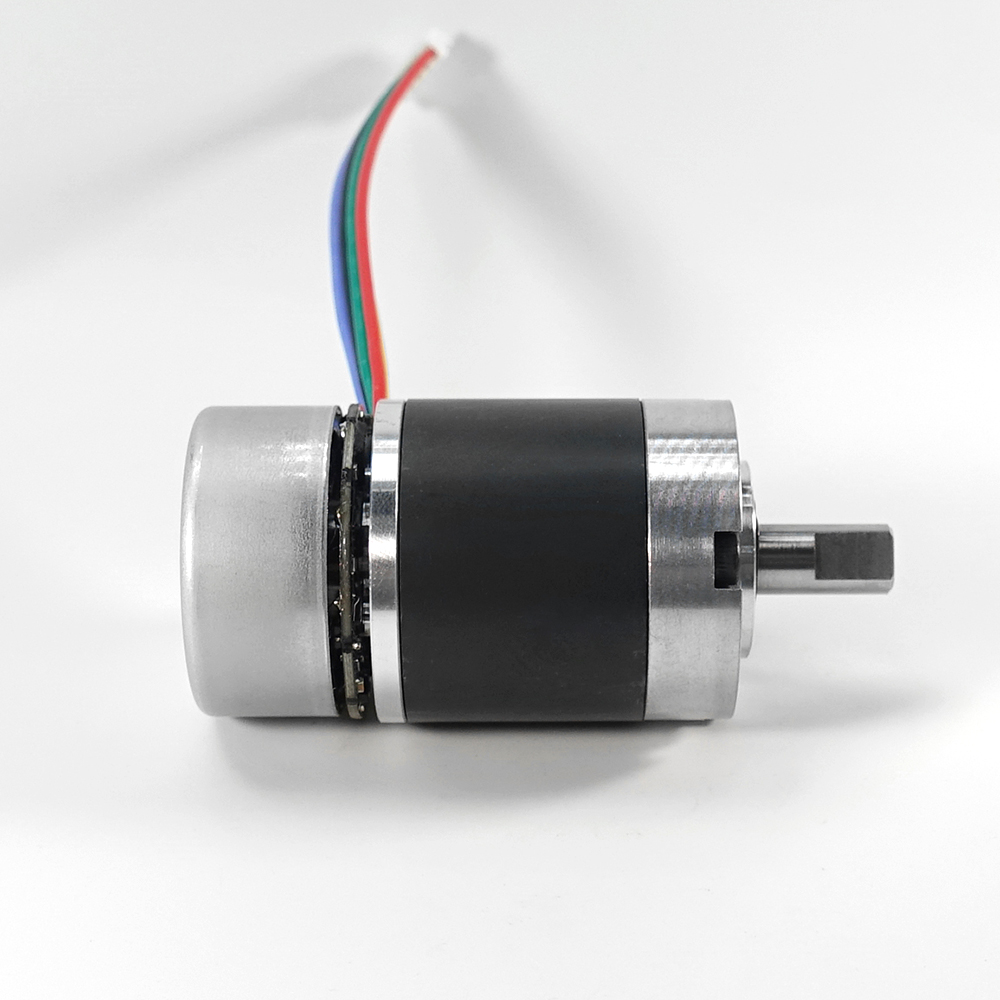

35mm Brushless Gear Motor

Suitable for medical equipment, smart home, testing equipment such as intelligent valve actuators, rocker power heads, water quality detectors, etc.

Adopting external rotor brushless motor + planetary gearbox design, more models available, consult online for matching.

Model：HAE3523N-01A

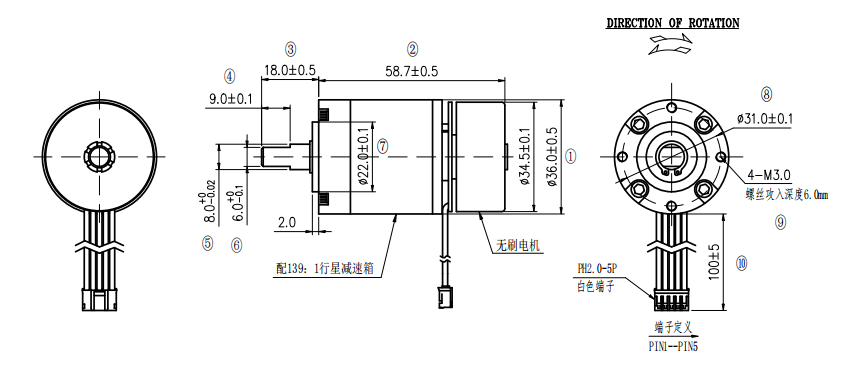

LxWxH(mm)：34.5mm (D) × 58.7mm (L)
Rated Volts (V)：12
Ld Speed (rpm)：6

Consultation

Product Details

Performance of Monolithic Motor

Model	Voltage(V DC)	No-Load Current(A)	No-Load Speed(rpm)	Rated Load(g.cm)	Rated Current(A)	Rated Speed(rpm)
HAE3523N-01A	12	0.05	1000	120.0	0.16	850

Gear Motor (Rated Torque/Speed List)

Model	Voltage(V DC)	Gear ratio	Rated Load(kg.cm)	Rated Speed(rpm)	Stall Torque(kg.cm)
HAE3523N-139:1	12	139	10	6	47

Motor performance parameters are for reference only;

customization is available according to actual requirements.
