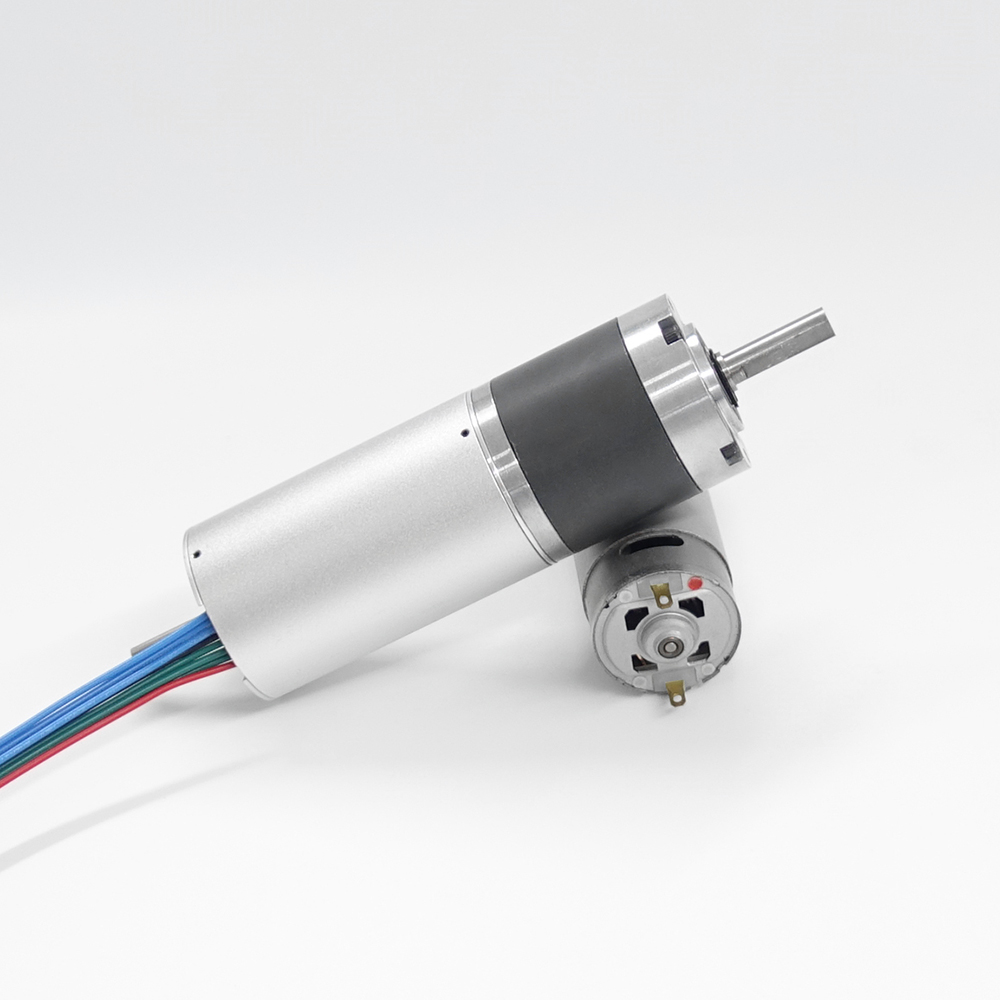

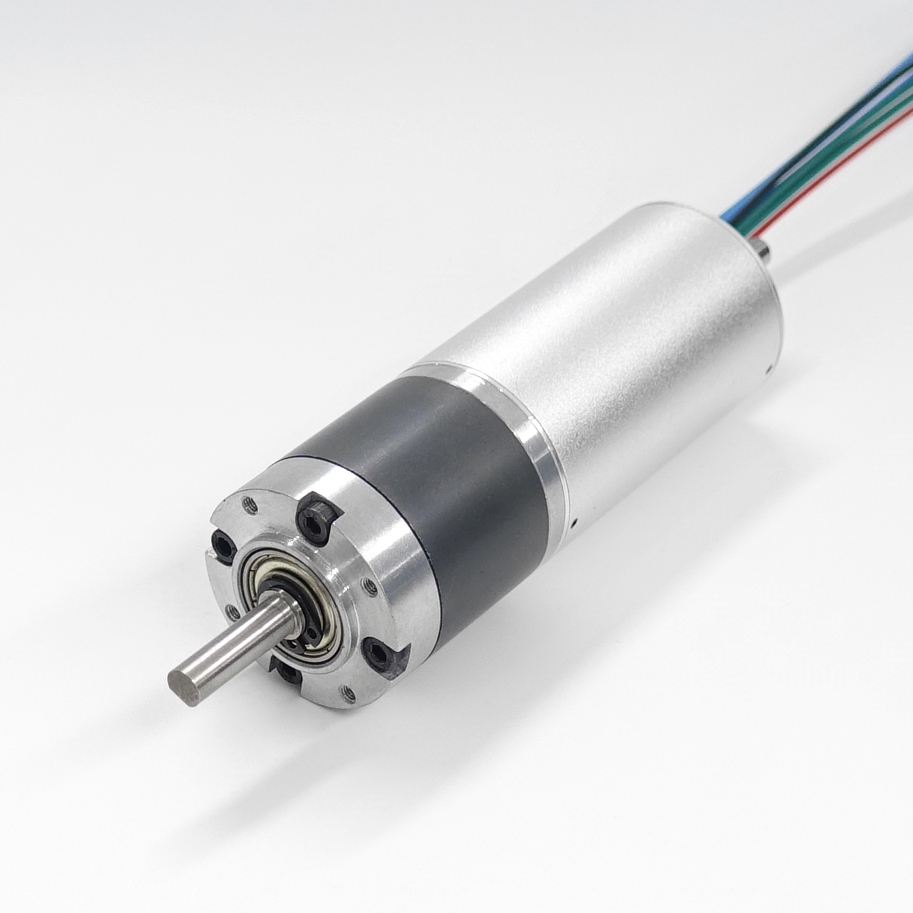

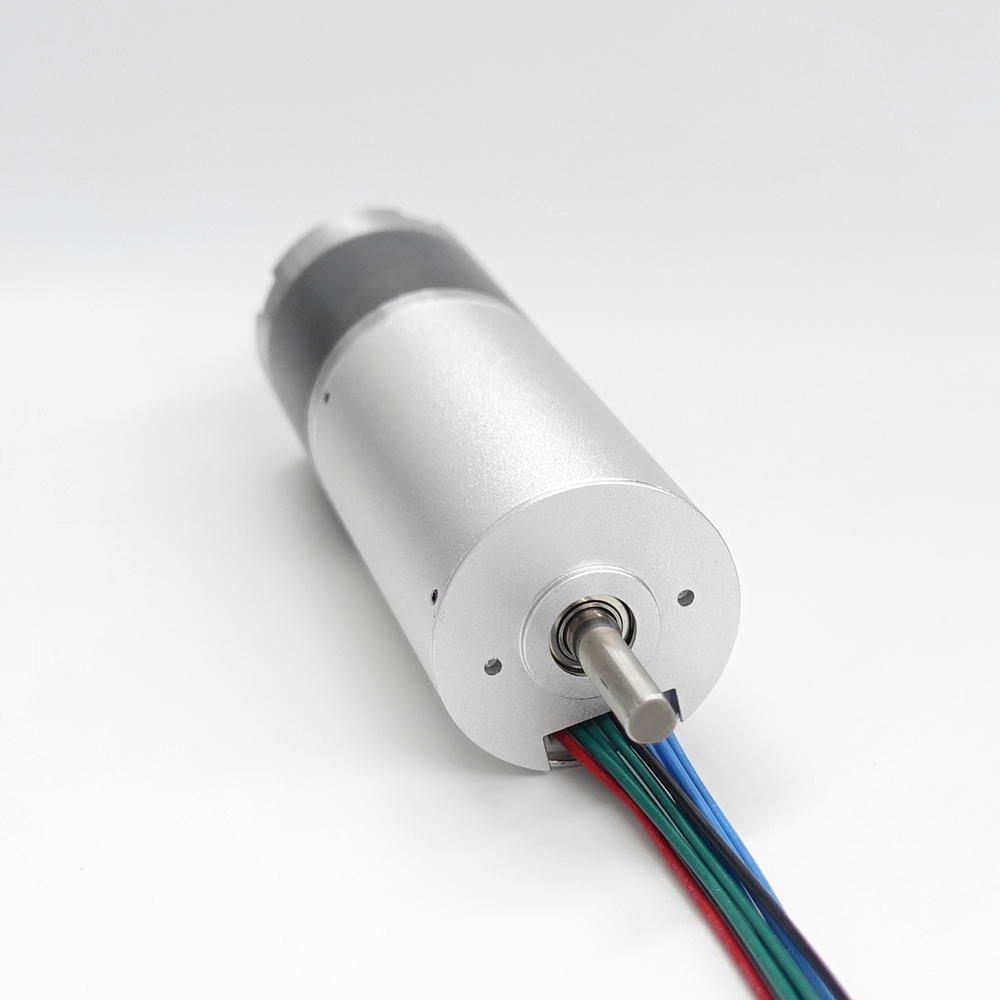

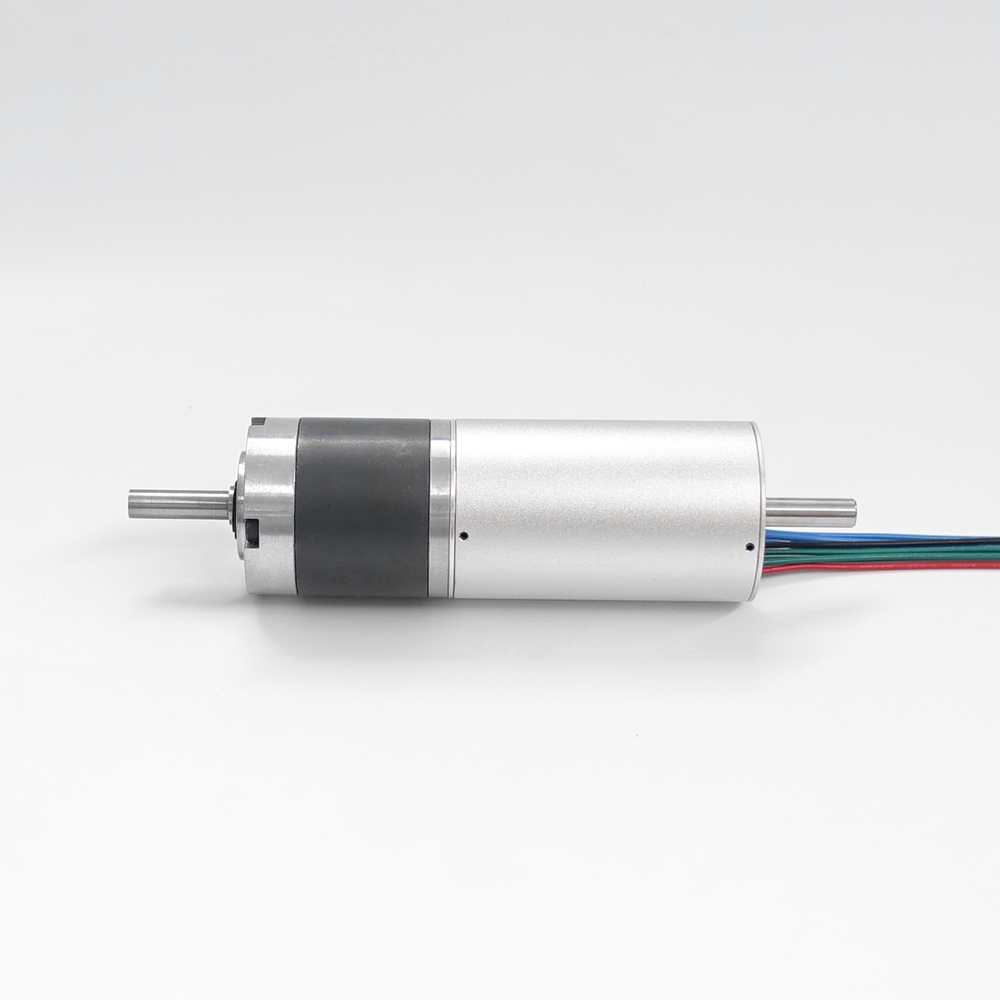

36mm Brushless Gear Motor

Suitable for high-speed rail transportation and automotive industry, such as business lift seats, car lift seats, testing equipment, etc.

Adopting coreless brushless motor + planetary gearbox design, more models are available, please consult online for matching.

Model：HCB3660H-09A/59:1

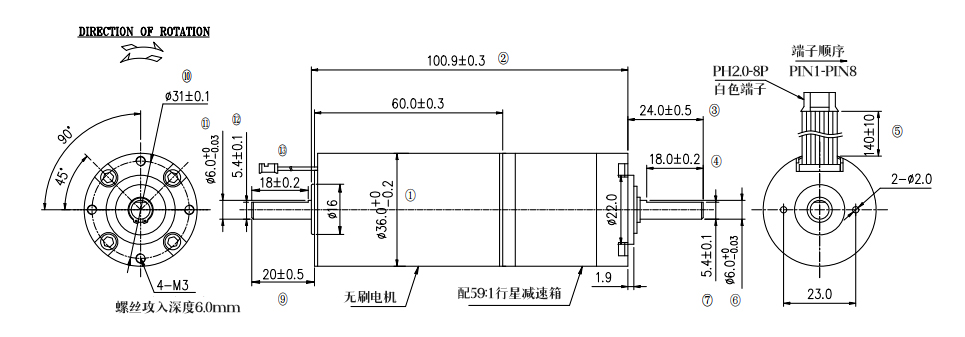

LxWxH(mm)：36mm (D) × 100.9mm (L)
Rated Volts (V)：24
Ld Speed (rpm)：142

Consultation

Product Details

Performance of Monolithic Motor

Model	Voltage(V DC)	No-Load Current(A)	No-Load Speed(rpm)	Rated Load(g.cm)	Rated Current(A)	Rated Speed(rpm)
HCB3660H-09A	24	0.28	10000	500.0	0.23	8400

Gear Motor (Rated Torque/Speed List)

Model	Voltage(V DC)	Gear ratio	Rated Load(kg.cm)	Rated Speed(rpm)	Stall Torque(kg.cm)
HCB3660H-09A	24	59	21	142	136

Motor performance parameters are for reference only;

customization is available according to actual requirements.
