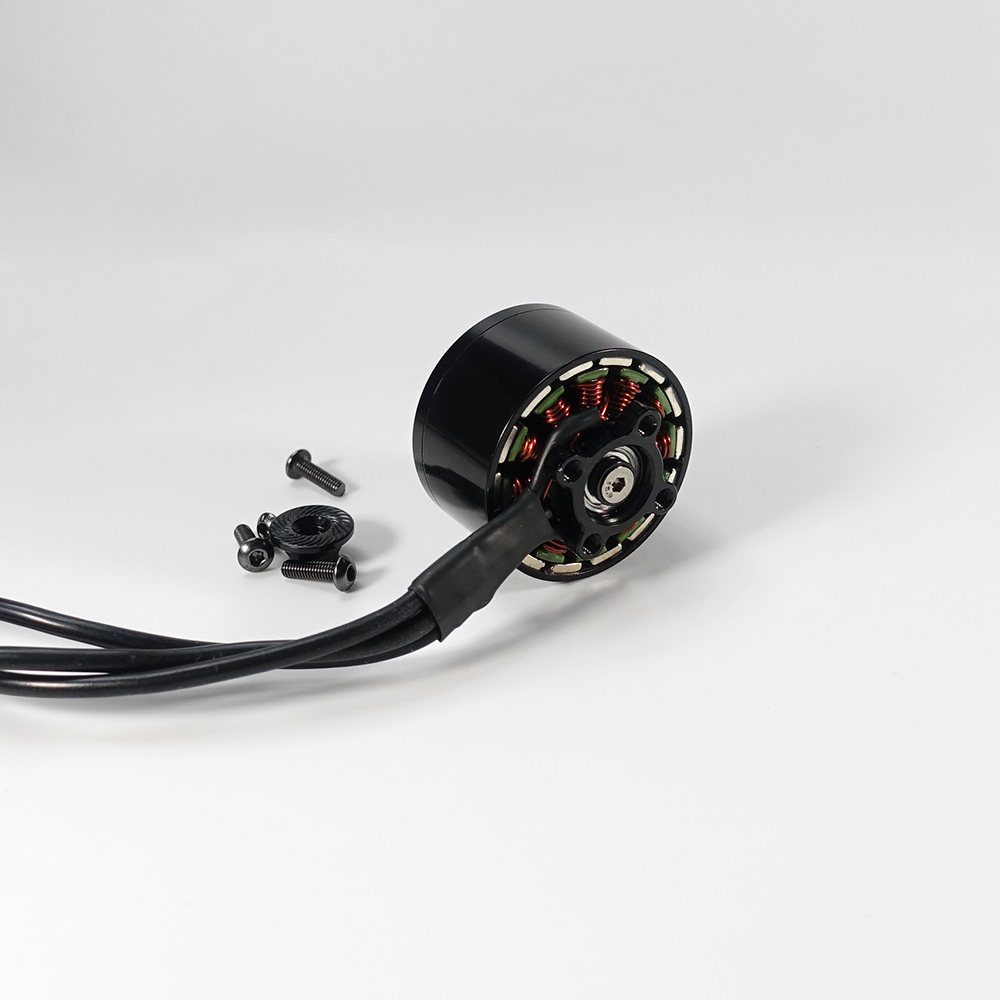

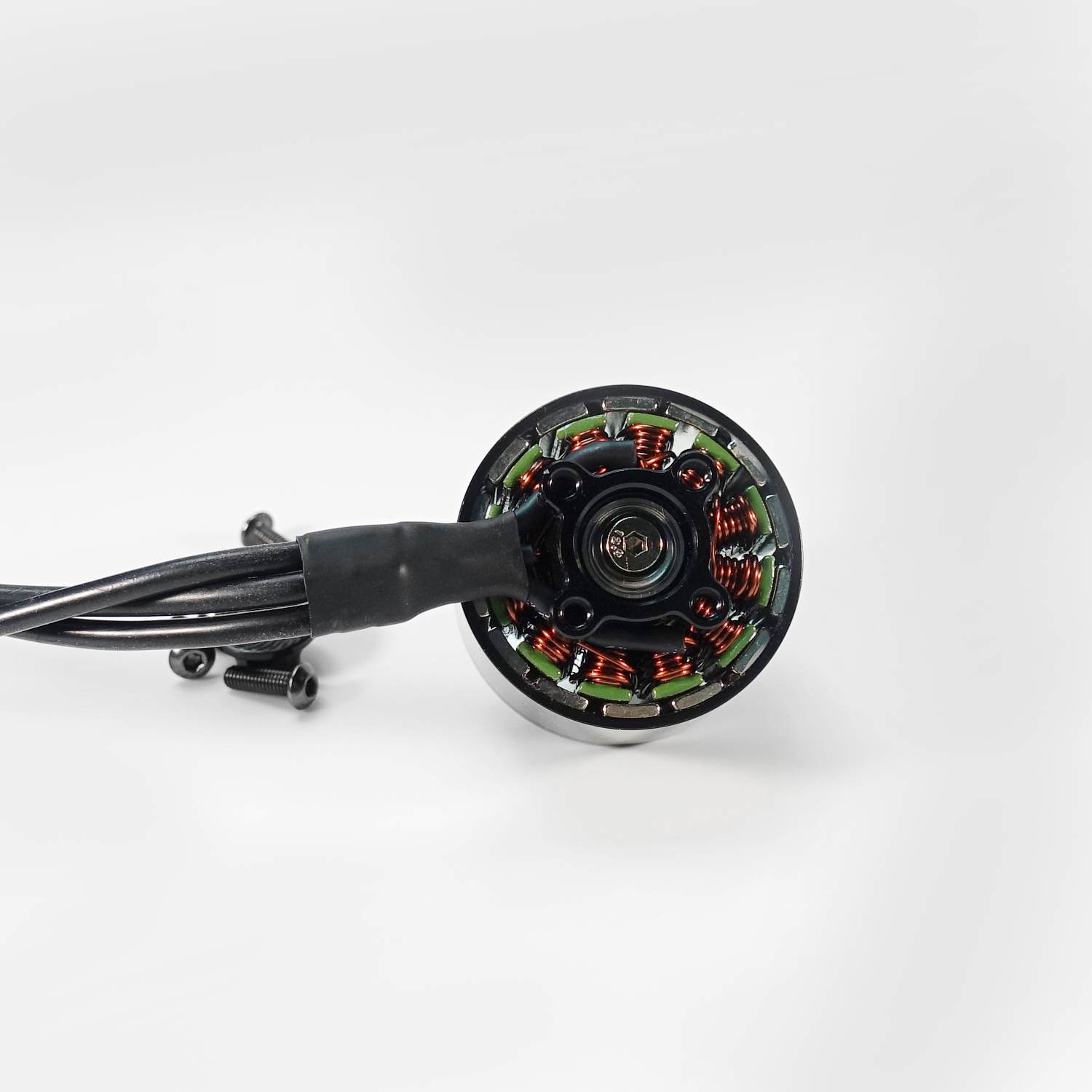

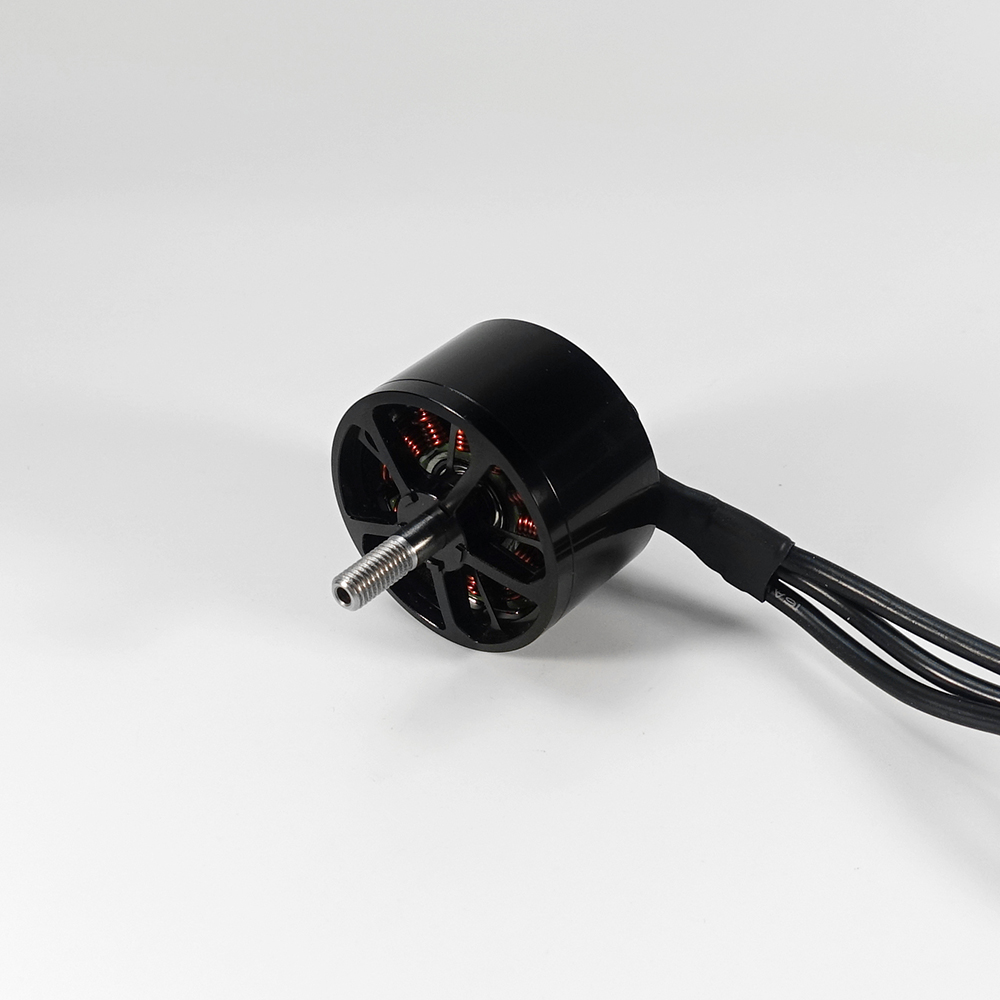

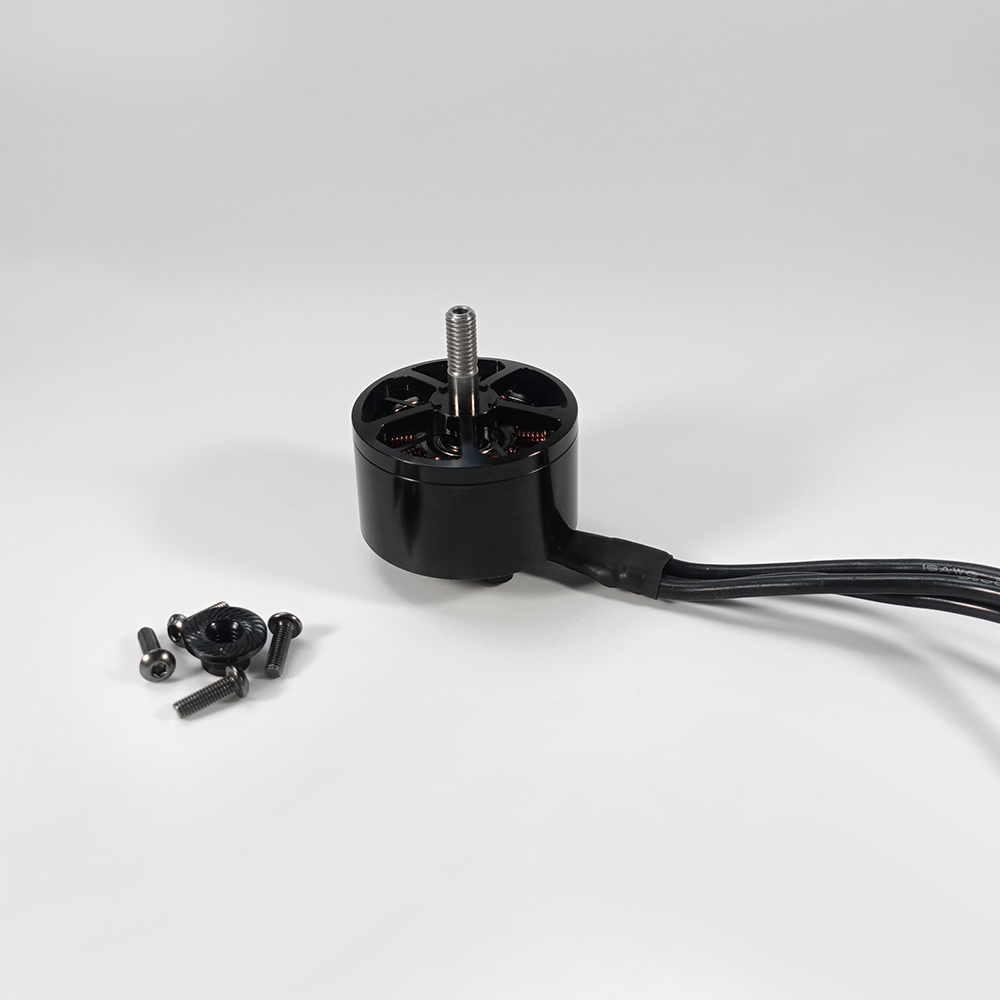

HAE3115-900KV Brushless Motor

Widely used in UAVs and FPV drones, applicable to various types of FPV drones such as racing, freestyle, long-range and ducted ones, a standard model.

Model：HAE3115
LxWxH(mm)：37.0(D)×21.3(H)
Rated Volts (V)：25.2
NLSpeed (rpm)：22000
Ld Speed (rpm)：21500
Stall Tq (mNm/A)：1600
Stall Curr.(A)：28

Consultation

Product Details

Technical Parameters

Model	HAE3115-900KV
Voltage(V DC)	25.2V
No-Load Speed(rpm)	22000±10%
No-Load Current(A)	≤2.8
Rated Speed(rpm)	21500±10%
Rated Current(A)	≤7.0
Rated Load(mN.m)	40
Rated Load(mN.m)	40
Stall Torque(mN.m)	≥1600
Stall Torque(mN.m)	≥1600
Stall Current(A)	28

Test Data with Propeller
Voltage	Prop	Throttle	Current(A)	Power(W)	Thrust(G)	RPM	Efficiency	℃
24V	3-Blade Prop	10%	1.22	30.9	118		3.82	55℃
		20%	3.3	79.2	339	2984	4.28
		30%	5.4	129.6	812	5298	6.27
		40%	7.8	187.2	1290	7452	6.89
		50%	11.3	271.2	1447	9546	5.34
		60%	18.1	434.4	1953	11286	4.50
		70%	27.5	660	2585	12599	3.92
		80%	38.2	916.8	3259	13600	3.55
		90%	52.8	1267.2	3728	14000	2.94
		100%	59	1416	4072	14650	2.88
