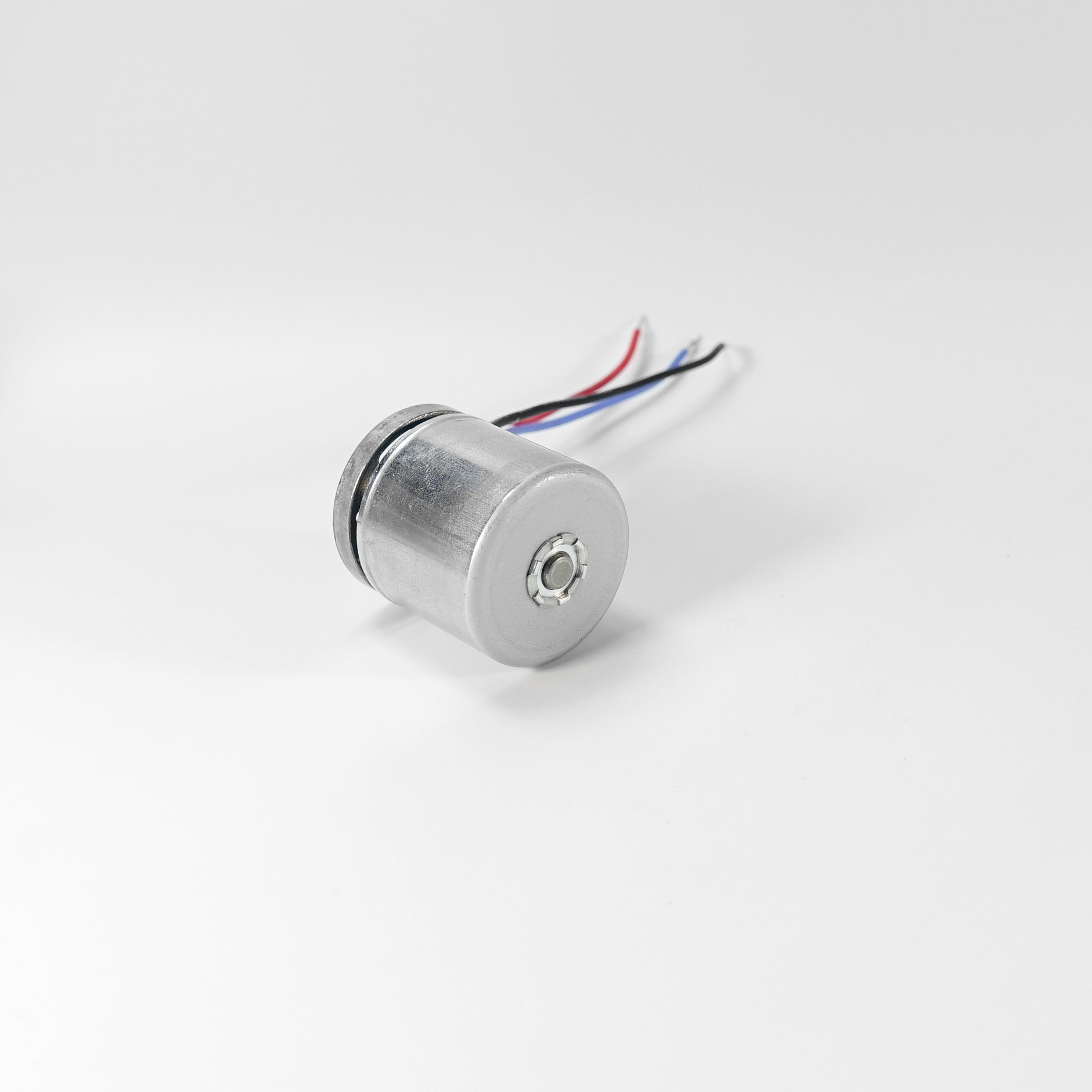

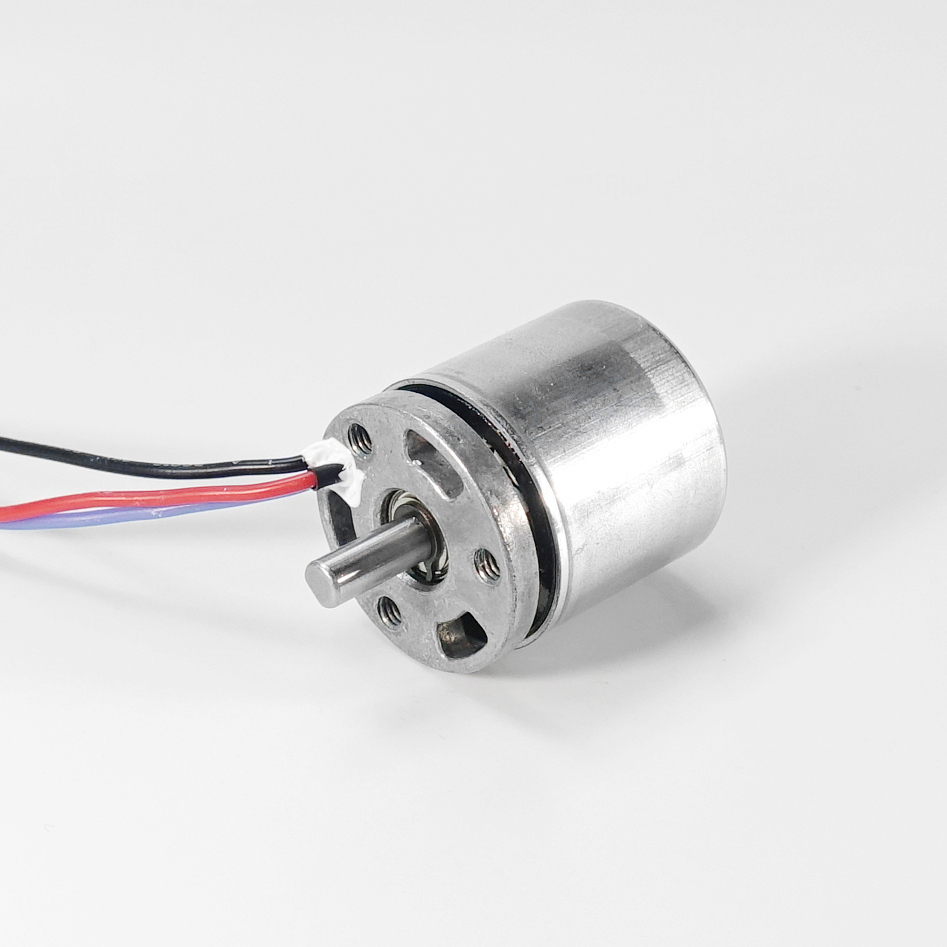

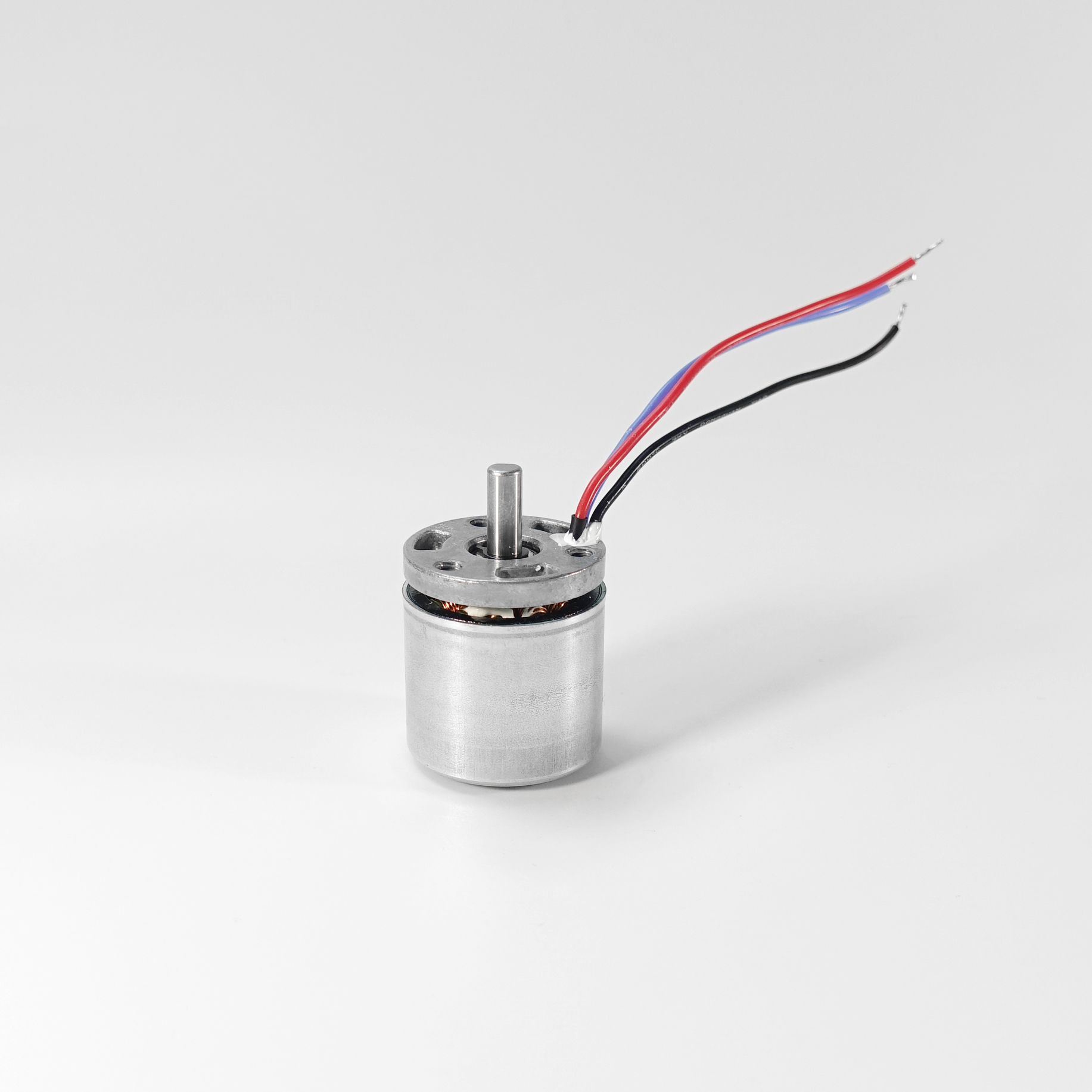

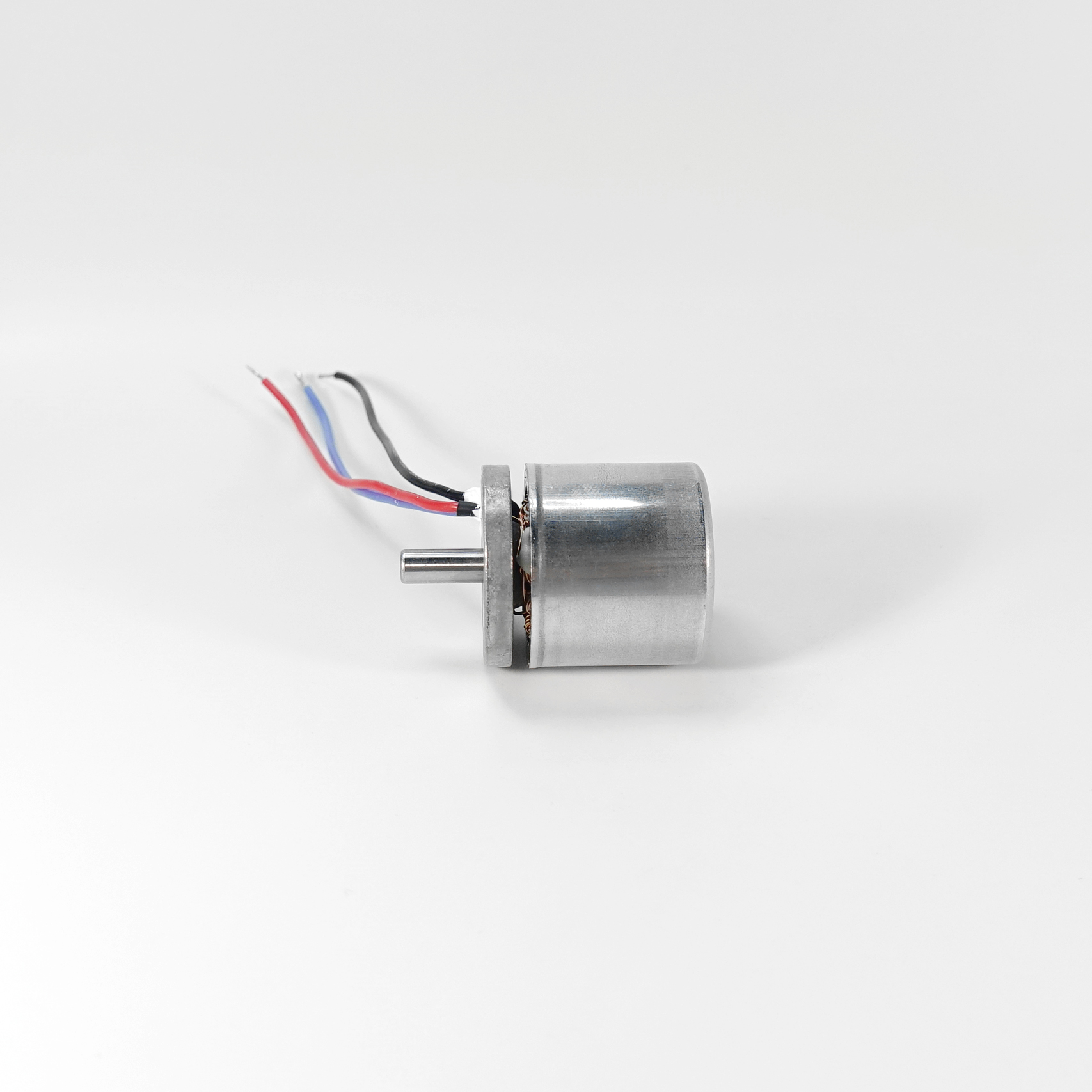

HAE2931 Brushless DC Motor

Widely used in household appliances, personal care, animal husbandry trimming, etc., such as wool clippers, high-power household clippers and so on

Model：HAE2931

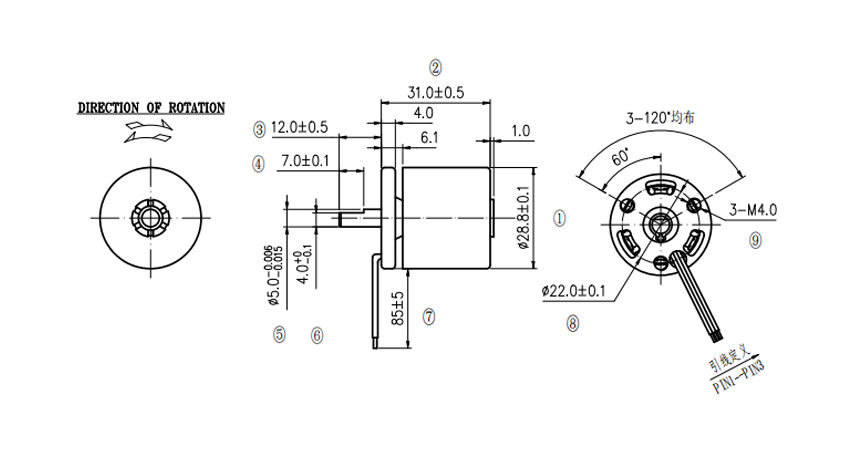

LxWxH(mm)：28.8(D)×31.0(H)
Rated Volts (V)：7.4-12.0
NLSpeed (rpm)：3800-4500
Ld Speed (rpm)：3300-3850
Stall Tq (mNm/A)：1700-2500
Stall Curr.(A)：8.5-9.6

Consultation

Product Details

Technical Parameters

Model	HAE2931N-01A	HAE2931N-02A
Voltage(V DC)	7.4	12.0
No-Load Speed(rpm)	4550	3800
No-Load Current(A)	0.31	0.16
Rated Speed(rpm)	3850	3300
Rated Current(A)	1.72	1.2
Rated Load(g.cm)	270	320
Rated Load(mN.m)	26.5	31.4
Rated Load(mN.m)	26.5	31.4
Load Power (W)	10.66	10.8
Stall Torque(g.cm)	1750	2500
Stall Torque(mN.m)	171.5	245.1
Stall Torque(mN.m)	171.5	245.1
Stall Current(A)	9.6	8.5
