The 3825 brushless motor dominates the fascia gun market.

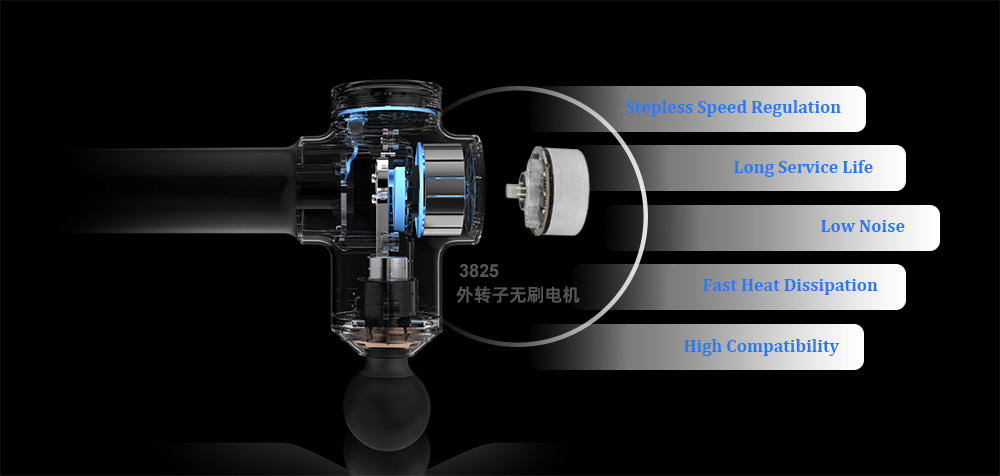

The core power of the fascia gun adopts an outer rotor brushless motor, which features long service life (more than 5000 hours), low noise (less than 45dB), precise speed regulation (built-in drive board), strong compatibility (1-8 control wires optional), fast heat dissipation (outer rotor design). It can operate efficiently and stably while adjusting speed accurately according to different needs for the fascia gun during long-time use.

Currently, 90% of fascia gun products on the market use outer rotor brushless motors, and the 3825 outer rotor brushless motor accounts for 82% of the market, making it the ideal professional motor for fascia guns. Its advantages are mainly reflected in:

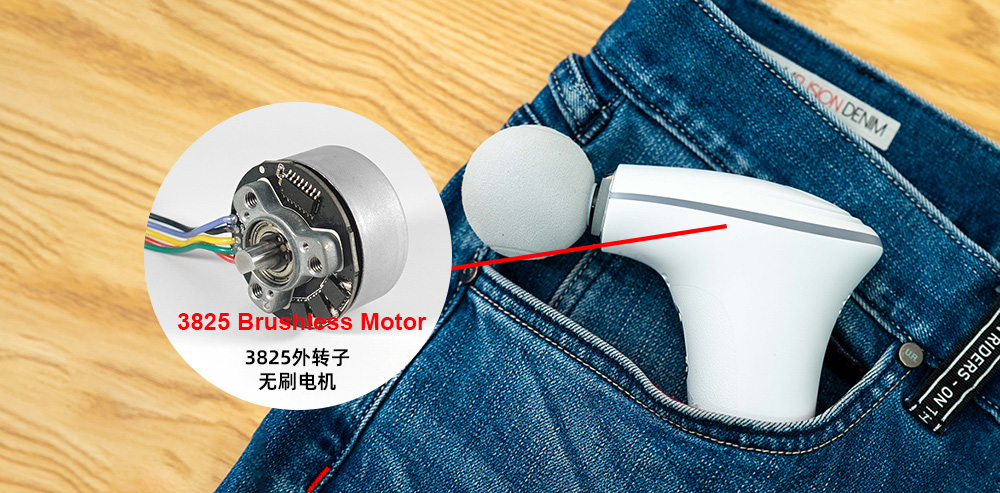

The 3825 outer rotor brushless motor (diameter 38mm, length 25mm) features a compact size. While meeting the appearance requirements, it can provide a stable thrust of 8-12kg, perfectly matching the deep muscle massage needs of fascia guns (amplitude 10-12mm), while avoiding excessive damage to soft tissues.

The 3825 outer rotor brushless motor has a built-in drive board, supporting 1700-4000 RPM stepless speed regulation. It can adjust the percussion frequency for different muscle groups (such as quadriceps / trapezius muscles), with an adjustment range 40% wider than traditional brushed motors.

Multiple control wires (1-8 wires) enable diverse functions. The 3825 outer rotor brushless motor can be seamlessly integrated with a pressure sensing module to achieve automatic intensity adjustment (such as the intelligent frequency conversion technology of SKG F5), avoiding muscle damage caused by excessive massage.

The outer rotor design improves heat dissipation efficiency. The temperature rise is ≤15℃ after 1 hour of continuous operation, and it can support 4 hours of high-intensity use with a 2000mAh battery.

For thousand-yuan fascia guns, finding a professional source manufacturer allows you to get a suitable 3825 outer rotor brushless motor for just a few dozen yuan. Creating high-profit products at low cost is the premise for every manufacturer to improve its strength.

Huajuntong Motor is a professional brushless motor manufacturer with an experienced team of brushless motor engineers. We can provide professional solutions from motor performance demand analysis to technical guidance for product applications.
