N20 motor applications for toy airplane models

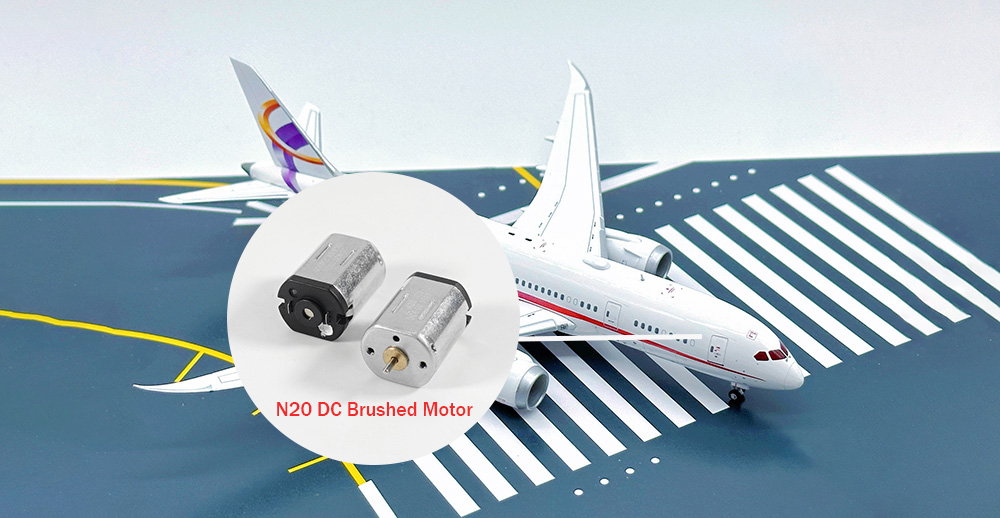

The N20 DC brushed motor is widely used in the toy industry due to its compact size, excellent performance, sufficient power, and low cost. Today, we will focus on where the N20 brushed motor can be applied in toy airplane models.

1、Propeller Drive System

The N20 brushed motor connects to the propeller shaft via a gearbox to provide flight power. Its compact design (typical dimensions 10×12×15mm) allows it to be embedded in narrow fuselage spaces, making it suitable for power output in micro aeromodels.

2、Landing Gear Retraction Mechanism

In aircraft models with movable structures, the N20 brushed motor drives a gear set to control the extension and retraction of the landing gear, enabling dynamic display functions.

3、Cabin door and control surface control

Some high-end models utilize multiple sets of N20 brushed motors in linkage to manipulate precise movements such as wing control surfaces and cabin door opening/closing, enhancing realism.

The N20 brushed motor weighs only about 10 grams, significantly reducing the airframe load and meeting the strict weight requirements of model aviation. Compared to brushless motors, the N20 brushed motor has a lower cost (2-4 yuan), making it suitable for mass production needs in consumer-grade toys.

N20 brushed motors are paired with different gearboxes depending on the specific toy aircraft model. When sourcing relevant micro motor manufacturers, it is necessary to provide the required gear ratio so that engineers can evaluate and produce motors tailored to fit the toy aircraft models.
