Application of Electric Lock Motor in Pedestrian Passage Gates

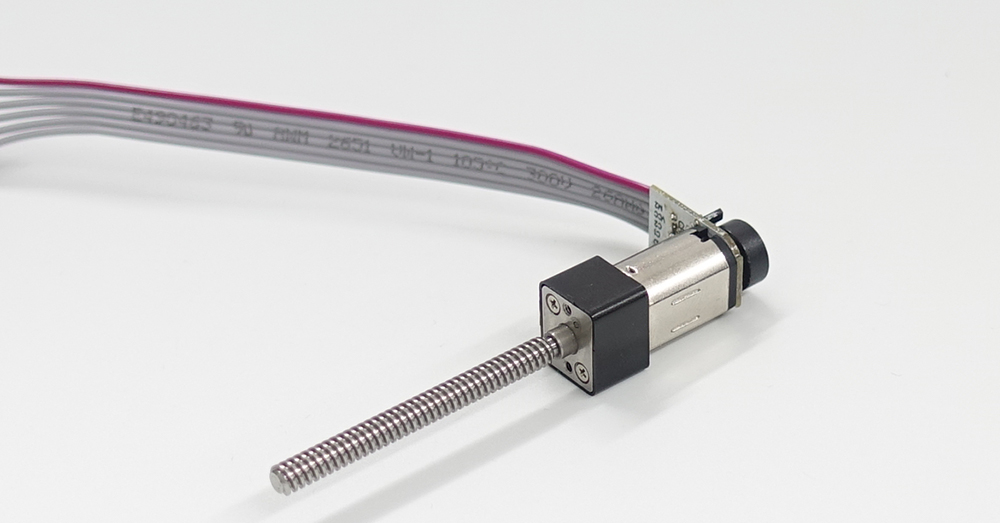

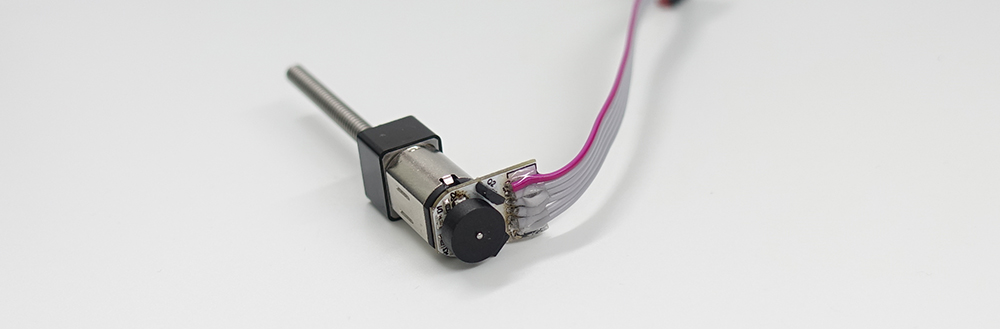

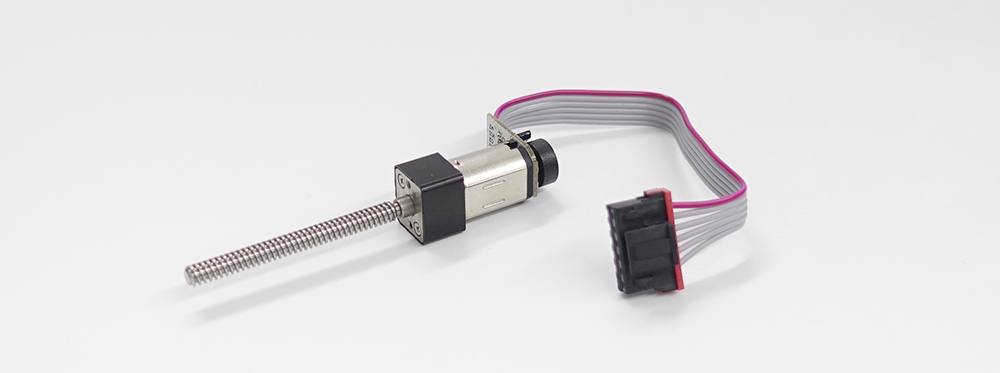

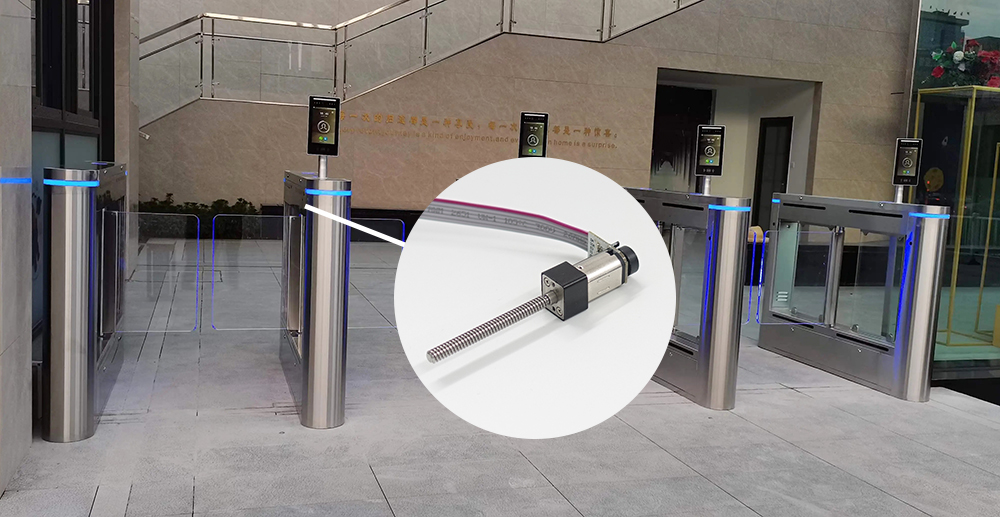

The automatic induction recognition open/close system for pedestrian passage gates adopts this N20 gear motor. The output shaft is equipped with a threaded rod, and the motor tail is fitted with a drive board controller. It can be controlled and unlocked according to various verifications such as face recognition, proximity cards, passwords, etc.

Main functions of the threaded rod on the output shaft:

The threaded rod converts the motor's rotational power into linear thrust, making it ideal for driving access control lock bolts that require precise displacement. After receiving the unlock command, the threaded rod pushes the lock bolt to retract, linking and opening the gate.

At the same time, the screw drive structure features low wear. Combined with the N20 motor's lifespan design of over 100,000 cycles, it meets the demands of high-frequency usage scenarios.

Main functions of the N20 gear motor:

The N20 gear motor reduces speed and increases torque through a planetary gearbox, ensuring accurate and stable travel of the threaded rod when pushing the lock bolt. The motor is powered by 3V-12V DC, compatible with common batteries or adapter power supplies for access control systems.

Main functions of the rear drive board controller:

It enables automatic sensing and unlocking with a response time within 0.3-0.5 seconds, meeting the needs for fast passage.

This N20 gear motor can also be applied to various pedestrian passage gates and can be adjusted according to specific performance parameters, as detailed below:

We have mature experience and application cases in motor drive modules for controlling the opening and closing of automatic sensor doors, and online consultation is available.
